TP-LINK TL-SG3424P, switch, 24x, 1Gb/s | TL-SG3424P

Spoločnosť TP-Link za pomerne krátky čas vošla na medzinárodný trh a rýchlo si získala početné množstvo spokojných zákazníkov. Dosiahla to kvalitnými výrobkami, ktoré sú doplnené službami, ktoré poskytujú zákazníkovi komfort a jednoduchosť používania ich produktov. Neustále spárovanie dvoch počítačov pre potreby prenosu dát je minulosťou. Sieťový switch nahradí únavnú činnosť. Zapojením počítačov, servov a tlačiarni pomocou lan kábla switch nahrádza túto činnosť a ponúka pohodlné a lasné riešenie pre domácnosť a kancelárie.

Parametre

? typ zariadenia	Typ zariadenia:	sieťový switch
? prevedenie	Prevedenie:
? LAN porty RJ45 (výstup) Slúžia na pripojenie drôtovej siete Ethernet počítača alebo tlačiarni , slúž aj na zdieľanie pripojenia na Internet, alebo oboje.	LAN porty RJ45 (výstup):	24x LAN konektor
? rýchlosť LAN	Rýchlosť LAN:	1000 Mb/s
? napájanie	Napájanie:	externý adaptér
? chladenie	Chladenie:	pasívne
? podpora napájania PoE	Podpora napájania PoE:	áno
? manažovateľný	Manažovateľný:	áno
? uchytenie do racku	Uchytenie do racku:	nie

zobraziť všetky parametre

Rychlosť LAN je prenosová rýchlosť siete LAN toto zariadenie poskytuje 1Gb/s prenosu dát pre vyšši komfort. PoE (Power over Ethernet) je technológia, ktorá pripojuje viacero sieťových zariadení cez ethernetový LAN kábel.Táto technológia umožňuje pripojenie sieťových produktov ako sú prístupové body, routery, IP kamery, modemy, prepínače, embedded počítačov alebo iných sieťových produktov. Manažovanie je prepínač umožňuje ovládať jednotlivé porty prepínača.kontrolovať ich rýchlosť pripojenia a nastavenia obojstrannej tlače.

Flow Control umožňuje priame spojenie medzi serverom a prepínačom pre rýchly a spoľahlivý prenos dát.

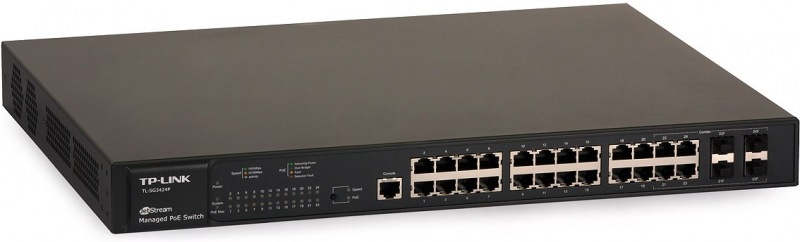

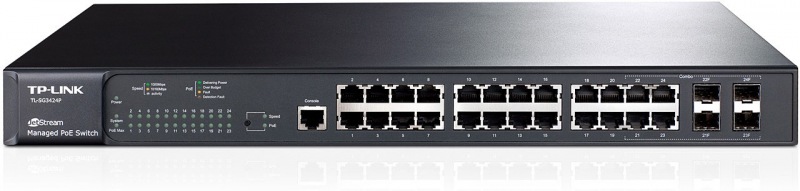

TP-Link TL-SG3424P JetStream™ 24-Port Gigabit L2 Managed PoE Switch s 4 Combo SFP Slots

Highlights:
· Supports 24 ports of802.3at/ af-compliant Power over Ethernet s a total power supply of 320W
· IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
· L2/ L3/ L4 QoS and IGMP snooping optimize voice and video application
· WEB/ CLI managed modes, SNMP, RMON bring abundant management features

What This Product Does
The TL-SG3424P provides 24 10/ 100/ 1000Mbps ports that supports 802.3at/ af-compliant PoE, s a total PoE power supply až do 320W, powerful and flexible enough for users to deploy Bezdrôtová access points or IP-based network surveillance cameras. The switch also comes equipped s 4 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the JetStreamTM Gigabit L2 Managed PoE Switch is an ideal choice for small and medium business networking.

TL-SG3424P has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along s CLI, SNMP and RMON, mean faster setup and configuration s less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, TP-LINK JetStreamTM Gigabit L2 Managed PoE SwitchTL-SG3424P provides you the ideal access-edge solution.

EEE 802.3at/ af-compliant Power over Ethernet
The TL-SG3424P supports 24 ports of IEEE 802.3at/ af-compliant PoE and has a total power supply of 320W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work s Bezdrôtová access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG3424P is ideal to flexibly use PoE to deploy Bezdrôtová access points or IP-based network surveillance cameras for projects or small business networks.

Secure Networking
This JetStreamTM Gigabit L2 Managed PoE Switch provides IP-MAC-Port-VID Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/ UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction s a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.

Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction s the Voice VLAN the switch supporting, the voice applications will operate s much smoother performance.

Abundant Layer 2 Features
For more application of layer 2 switches, TL-SG3424P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Mirroring, STP/ RSTP/ MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features
TL-SG3424P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI)or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/ 2/ 3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. In addition, integrated NDP/ NTDP protocol, the switch supports to be managed by the commander switch through IP clustering function more easily.

Dokumenty:

• Odkaz na web výrobce [url]
• Datasheet [pdf]
