D-Link DHP-W311AV, powerline | DHP-W311AV/E

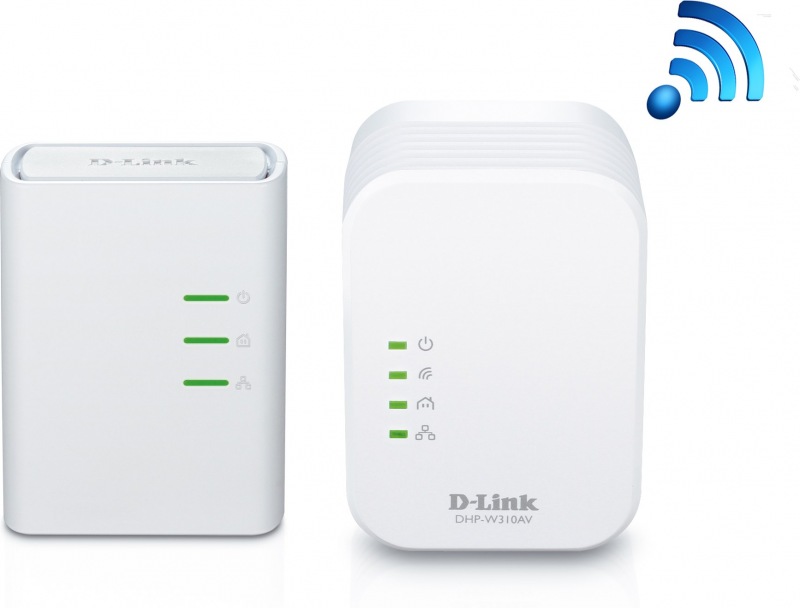

D-Link DHP-W311AV PowerLine AV 500 Wireless N Starter Kit


OVERVIEW
The PowerLine AV 500 Wireless N Mini Starter Kit comprising of the DHP-W310AV and the DHP-308AV, allow you to extend your existing home network to enjoy high-speed and reliable connectivity throughout your home. By combining both PowerLine and Bezdrôtová technology, it allows you to extend and create Bezdrôtová networks, s the latest HomePlug AV and Bezdrôtová N standards, where it was not possible before. Using your existing electrical wiring, no additional wires are necessary to extend your network.

FEATURES
• Converts any power socket into a network connection point
• až do500 Mbps speeds over your existing electrical wiring
• až do300 Mbps Bezdrôtová speeds
• Improved resistance to electrical interference
• D-Link Green™: energy-saving design

SPECIFICATIONS
Standards
• IEEE 802.3
• IEEE 802.3u
• HomePlug AV
• IEEE 1901

PowerLine interface
• Power plug (country-dependent)

Ethernet interface
• 10/ 100BASE-TX Ethernet port s Auto MDI/ MDIX
• RJ-45 connector

Input Power
• 100V ~ 240V, 50/ 60 Hz
• 6 W maximum

PowerLine modulation scheme
• OFDM symbol modulation

PowerLine frequency band
• 2 MHz to 30 MHz

Data rates
• PowerLine: až do 500 Mbps (PHY rate)
• Ethernet: 10/ 100 Mbps (auto negotiation)

Security
• 128-bit AES link encryption

Minimum system requirements (For PC Utility Software)
• Windows 7/ Vista/ XP SP3
• Ethernet interface (100 Mbps)

LEDs
• Power
• PowerLine
• Ethernet

Rozmery (H x L x W)
• 90 x 65 x 50 mm (each adapter)

Váha
• 174.8 g

Operating temperature
• 0 to 40 oC

Operating humidity
• 10% to 90% non-condensing

Certifications
• FCC
• CE EMC Class B
• UL
• CE LVD
