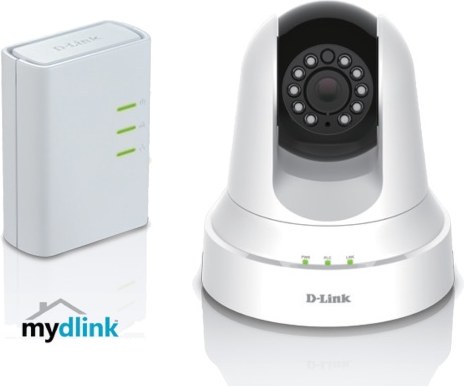

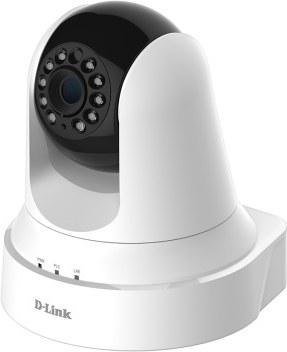

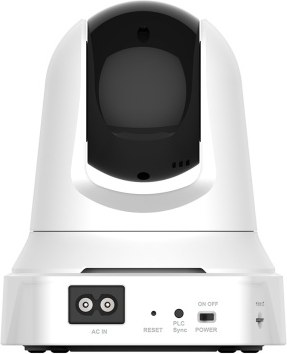

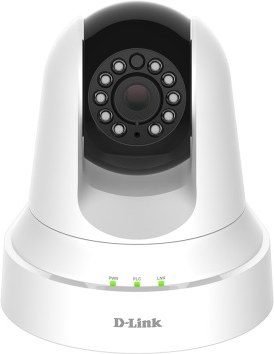

D-Link DCS-6045LKT / E PwrLine HD D / Night Cloud Cam | DCS-6045LKT/E

D-Link DCS-6045LKT/ E PwrLine HD D/ Night Cloud Cam


OVERVIEW
Convenient Network Connectivity
PowerLine interface compatible with
HomePlug AV standards
PowerLine data transfer rates of až do 200 Mbps
Subtle design discreetly blends into your home

Multimedia
Real-time H.264 and MJPEG compression
Motion detection
Sound level detection

Security
Send snapshots or video clips to your FTP site or via e-mail
Remote video monitoring

Camera
High-quality HD CMOS
Built-in IR LED
MicroSD/ SDHC card slot for onboard storage2

Ease Of Use
UPnP & DDNS support
PLC support
Instant Access Anywhere
mydlink™ enabled

SPECIFICATIONS
CAMERA
Camera Hardware Profile
1/ 4” 1 MP progressive CMOS sensor
6 meter IR illumination distance minimum illumination 0 lux s IR LED on
Built-in Infrared-Cut Removable (ICR) filter module
4X digital zoom
Fixed length 3.3 mm
Aperture F2.0
Angle of view: (H) 68.88°, (V) 37.85°, (D) 79.77°
Minimum object distance: 400 mm
Exposure Time: 1 to 1/ 38400 seconds
Built-in microphone

Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable brightness, saturation, contrast

Video Compression
H.264/ MJPEG format compression simultaneously
JPEG for still image

Video Resolution
1280 x720, 640 x 480, 320 x 240 at frame rates až do 30 fps2

Audio Compression
PCM
AAC

Connectivity
PowerLine 200 Mbps (PHY rate)

External Device Interfaces
MicroSD/ SDHC slot3

NETWORK
Network Protocols
IPV4, ARP, TCP, UDP, ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP server
PPPoE
UPnP port forwarding

Security
Password authentication
HTTP digest authentication

SYSTEM INTEGRATION
System Requirements for Web Interfaces
Operating system: Microsoft Windows 8, 7, Vista, XP
Browser: Internet Explorer, Firefox, Safari, Chrome

Event Management
Motion detection
Sound level detection
Event notification and uploading of snapshots/ video clips via SMTP or FTP

Remote Management
Configuration accessible via web browser

Mobile support
mydlink™ Lite app for iOS and Android

D-ViewCam™ System Requirements
Operating System: Microsoft Windows 8, 7, Vista, XP
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/ IP

D-ViewCam™ Software Functions
Remote management/ control of až do 32 cameras
Viewing of až do 32 cameras on one screen
Supports all management functions provided in the web interface
Scheduled motion triggered, or manual recording options

GENERAL
Rozmery
DCS-6045L: 113 x 114 x 139 mm including base
DHP-308AV: 70 x 52 x 26 mm

Weight
DCS-6045L: 262 g
DHP-308AV: 110.7 g

Power
100-240 V AC, 50/ 60 Hz

Power Consumption
DCS-6045L: 8 W
DHP-308AV: 3.01W

Temperature
Operating: 0 to 40 °C
Storage: -10 to 70°C

Humidity
Operating: 20% to 80% non-condensing
Storage: 20% to 80% non-condensing

Certifications
CE
CE LVD
FCC
C-Tick

1 The DCS-6045L and DHP-308AV is compatible s PLC adapters using the standards listed below;
HomePlug 1.1
HomePlug AV
2 Frame rates when streaming video may vary depending on network conditions and method used.
3 MicroSD card not included. A microSD Class 6 card or above is recommended. Supports card capacities až do 32GB.
