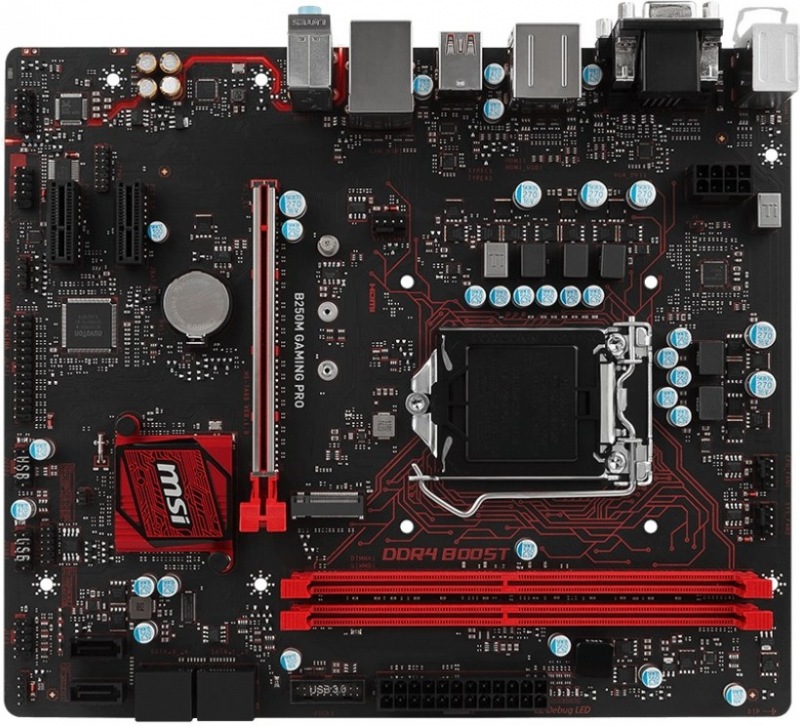

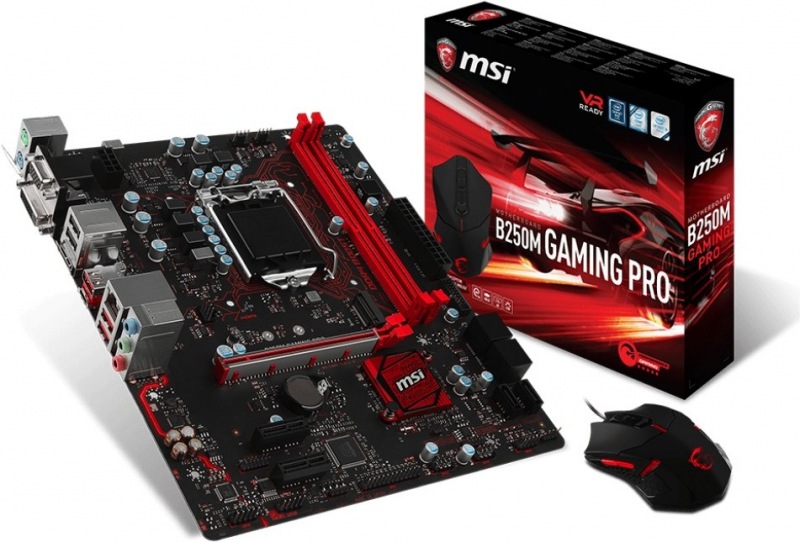

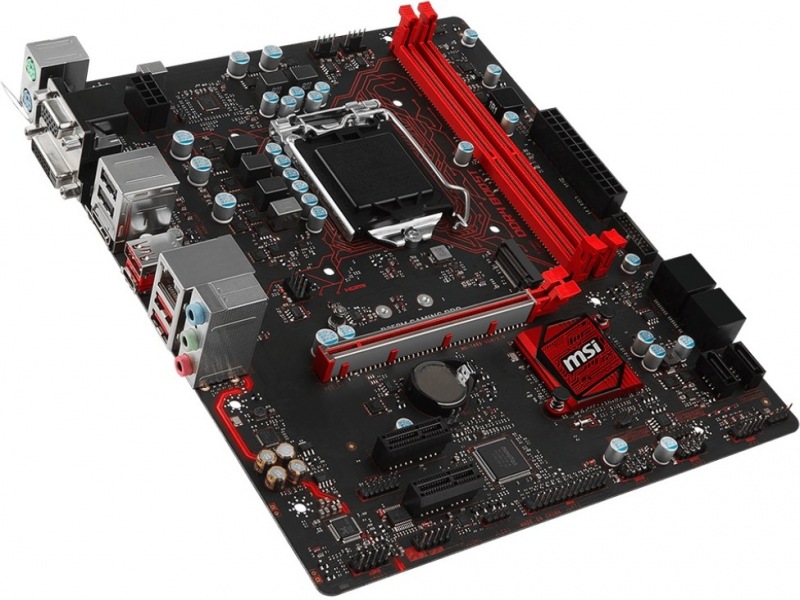

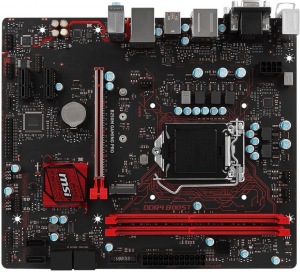

MSI B250M GAMING PRO | B250M_GAMING_PRO

CPU


• Supports 6th/ 7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
This function will be supported depend on the CPU.

Chipset

• Intel® B250 Chipset

Main Memory

• 2 x DDR4 memory slots, support až do 32GB
- 7th Gen processors support DDR4 2400/ 2133 MHz*
- 6th Gen processors support DDR4 2133 MHz*
• Dual channel memory architecture
Please refer www.msi.com for more information on compatible memory.

Slots

• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• 2 x PCIe 3.0 x1 slots


Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

Storage

• Intel® B250 Chipset
• 6 x SATA 6Gb/s ports
• 1x M.2 slot (Key M)*
- Supports až do PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280 storage devices
- Intel® Optane™ Memory Ready
- Support PCIe 3.0 x4 NVMe U.2 SSD s Turbo U.2 Host Card**

The SATA1 connector will be unavailable when an M.2 SSD module has been installed in the M.2_1 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.


USB

• Intel® B250 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)

Audio

• Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio


LAN

• 1 x Intel® I219-V Gigabit LAN controller


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x RGB LED connecotr
- 1 x Clear CMOS jumper

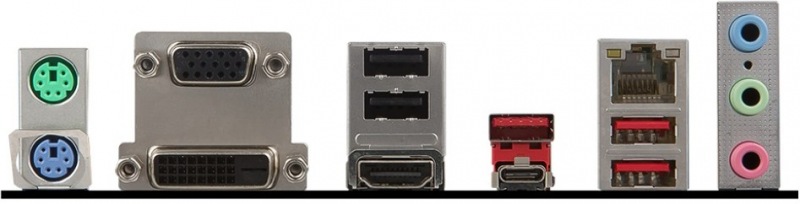

Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI™ port
- 2 x USB 2.0 Type-A ports
- 3 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen1 Type-C port
- 1 x LAN (RJ45) port
- 3 x audio jacks

Rozmery

• 9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
• m-ATX Form Factor
