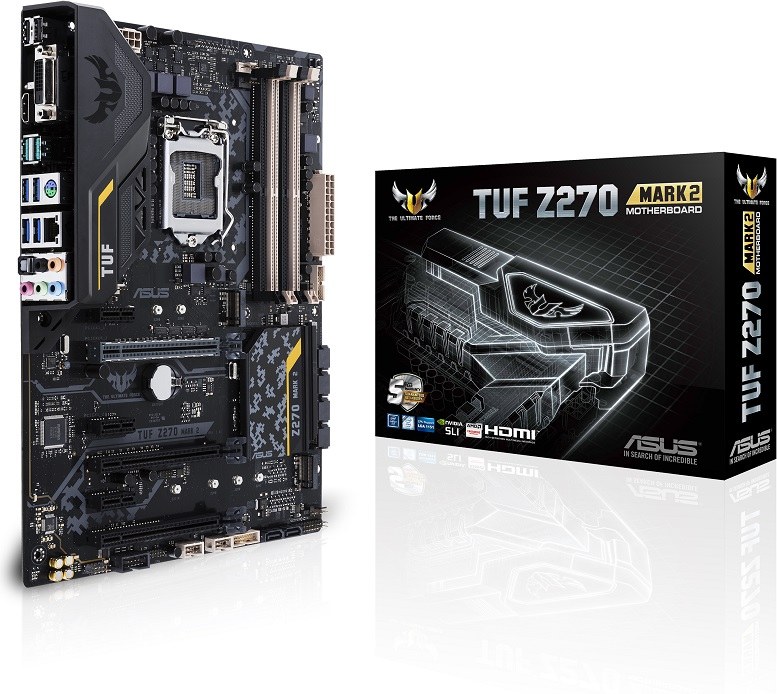

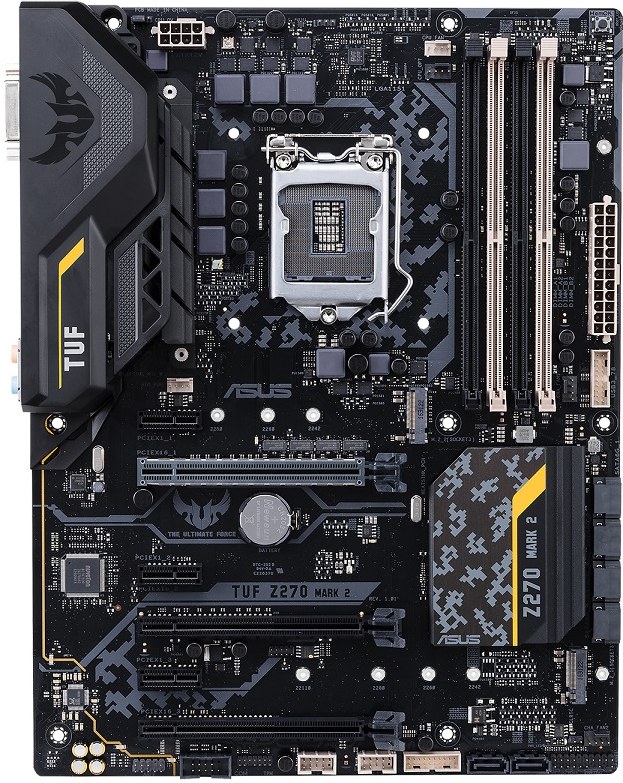

ASUS TUF Z270 MARK 2
    ASUS TUF Z270 MARK 2 PN kód: 90MB0ST0-M0EAY0
CPU
ParametreSupports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. Refer to www.asus.com for CPU support list Chipset Intel® Z270 Memory 4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). The maximum memory frequency supported varies by processor. Graphic integrovaná Graphics Processor- Intel® HD Graphics support Multi-VGA output support: HDMI/ DVI-D ports - Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Multi-GPU Support Supports NVIDIA® 2-Way SLI™ Technology Supports AMD CrossFireX™ Technology Expansion Slots 2 x PCIe 3.0/ 2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/ 2.0 x16 (x2 mode) 3 x PCIe 3.0/ 2.0 x1 Storage 1 x M.2 Socket 3*1,, s M Key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3,, s M Key, type 2242/ 2260/ 2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/ s port(s), gray Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology*2 Intel® Optane™ Memory Ready *3 LAN Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility Audio Realtek® ALC887 -8Channel High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retasking Audio Feature: - LED-illuminated design - Brighten up your build s the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/ digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound s exceptional clarity and fidelity USB Ports ASMedia® USB 3.1 controller: 2 x USB 3.1 port(s) (2 at back panel, +teal blue, Type-A) Intel® Z270 Chipset: 8 x USB 3.0 port(s) (4 at back panel, +blue, 4 at mid-board) Intel® Z270 Chipset: 6 x USB 2.0 port(s) (2 at back panel,, 4 at mid-board) Special Features TUF Features: TUF ENGINE! Power Design: - 4 +2 Digital Phase Power Design - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) Ultimate COOL! Thermal Solution: - Thermal Radar Core+ Safe & Stable! Guardian Angel: - TUF ESD Guards 2 - TUF LANGuard ASUS Exclusive Features: - MemOK! - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface File Transfer - Cloud GO! - File Transfer ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection: - ASUS C.P.R.(CPU Parameter Recall) Turbo APP M.2 Onboard(The latest transfer technologies s až do 32Gb/ s data transfer speeds) Back I/ O Ports 1 x PS/ 2 keyboard/ mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 (teal blue) 4 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/ PDIF out 5 x Audio jack(s) Internal I/ O Ports 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/ s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/ PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x System panel connector 1 x COM port header 1 x AIO PUMP Header Accessories User s manual 2 x SATA 6Gb/ s cable(s) 1 x M.2 Screw Package 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-connector(s) (1 in 1) 1 x TUF Certification card(s) 1 x TUF 5 Year Warranty manual(s) (by region) 1 x TUF Inside sticker(s)(white) 1 x SCD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information Operating System Windows® 10 64-bit Windows® 8.1 64-bit *4 Windows® 7 32-bit *4 Windows® 7 64-bit *4 Form Factor ATX Form Factor 12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) Note 1.When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. 2.These functions will work depending on the CPU installed. 3.Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. 4.Windows® 8.1 64-bit and Windows® 7 32/ 64-bit are only supported when using 6th Generation Intel® Processors Ďalšie informácie výrobcu: Najpredávanejší tovar s podobnou cenou: Základné dosky (MB) - MB socket Intel 1151 s podobnou cenou ± 20%Cenovo podobné ASUS TUF Z270 MARK 2[najžiadanejšie 5]
