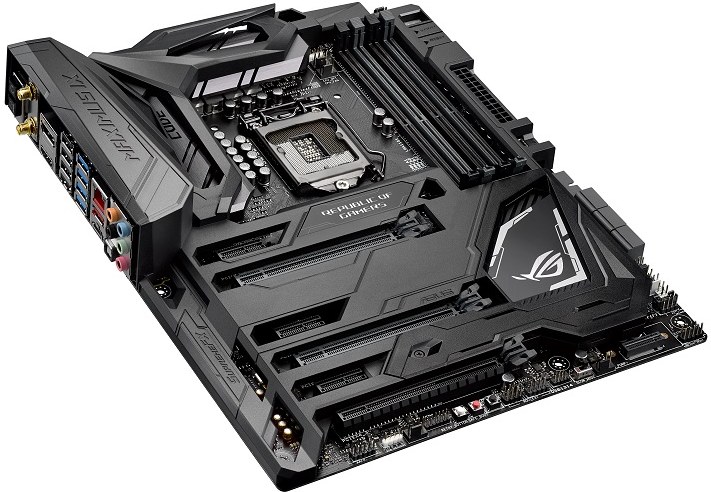

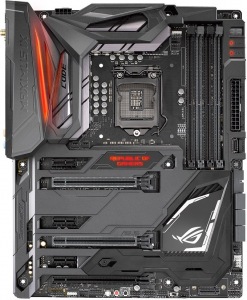

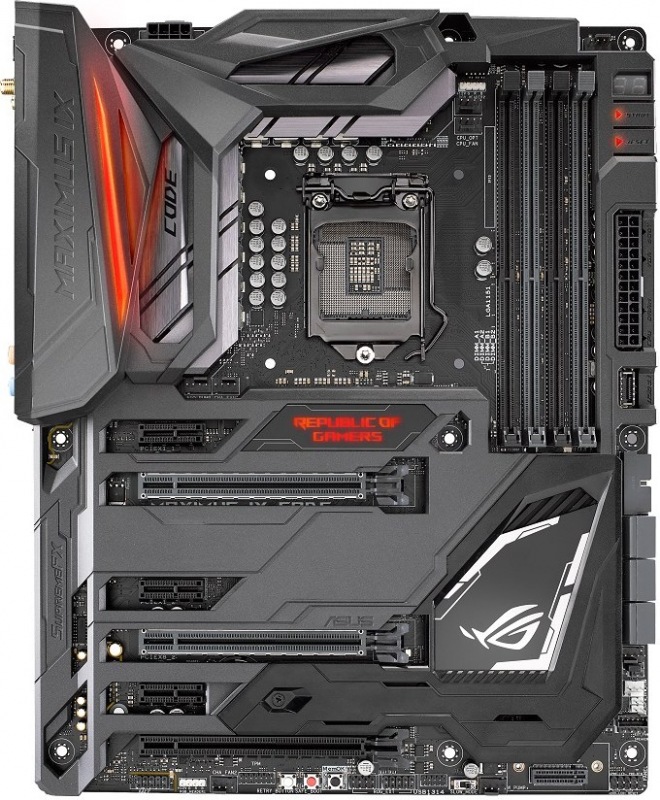

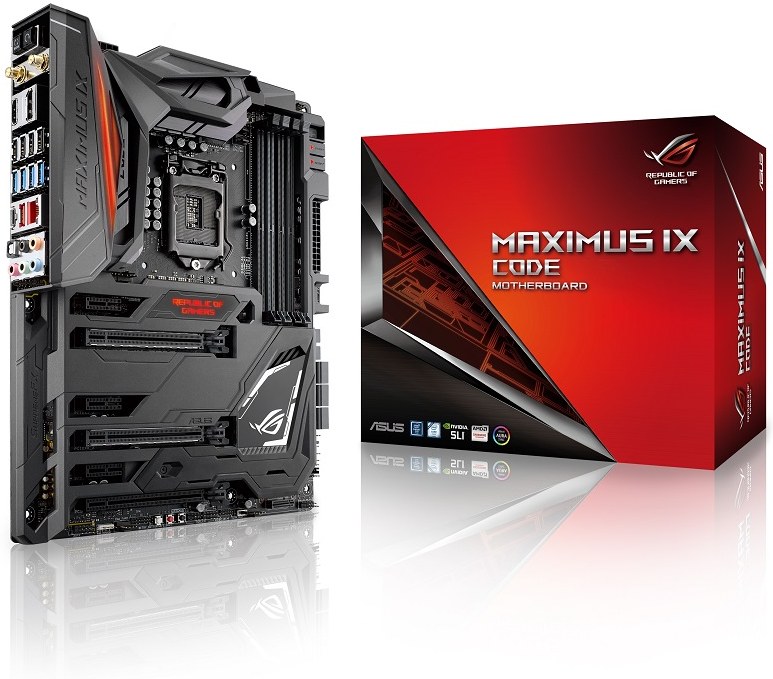

ASUS ROG MAXIMUS IX CODE | 90MB0SE0-M0EAY0

CPU
Intel® for 7th/6th Generation Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support list
Chipset
Intel® Z270
Memory
4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
integrovaná Graphics Processor
Multi-VGA output support: HDMI/DisplayPort 1.2 ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort s max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
1 x PCIe 3.0/2.0 x16 (x4 mode, čierna) *1
3 x PCIe 3.0/2.0 x1
Storage
Intel® Z270 Chipset:
1 x M.2 Socket 3, s M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
1 x M.2 Socket 3, s M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*3
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*4
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *5
LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth V4.1*6
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports až do 32-Bit/192kHz playback *7
Audio Feature:
- Gold-plated jacks
- Sonic Radar III
- Sonic Studio III
USB Ports
ASMedia® USB 3.1 controller:
1 x USB 3.1 front panel connector port(s)
ASMedia® USB 3.1 controller:
2 x USB 3.1 port(s) (2 at back panel,, Type-A + Type-C)
Intel® Z270 Chipset:
6 x USB 3.0 port(s) (4 at back panel,, 2 at mid-board)
Intel® Z270 Chipset: *8
6 x USB 2.0 port(s) (4 at back panel,, 2 at mid-board)
ROG Exclusive Features
Clear CMOS button
ROG Armor
ROG RAMCache II
ROG CloneDrive
MemOK! Button
ReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+:
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
KeyBot II
- X.M.P.
- ClrCMOS
- Power On
UEFI BIOS features:
- O.C. Profile
- Tweakers Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
BIOS Flashback
Special Features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
ASUS Exclusive Features:
- MemOK!
- AI Suite 3
- Ai Charger
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (čierna)Type-A
1 x USB 3.1 (red)Type-C
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
2 x Wi-Fi antenna port(s)
1 x USB BIOS Flashback Button(s)
Internal I/O Ports
2 x Aura RGB Strip Headers
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 s M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 s M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x H_AMP fan connector
1 x W_PUMP+ connector (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x EXT_Fan header
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Thermal sensor connector
1 x Start button
1 x USB 3.1 front panel connector
Accessories
User s manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x 10-v-1 ROG cable label
1 x M.2 bracket
1 x Extension Cable for RGB strips (80 cm)
1 x ROG coasters
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM2.0, DMI3.0, WOL by PME, PXE
Support Disc
Drivers
ROG GameFirst IV*
ROG RAMDisk
ROG RAMCache II
ROG CPU-Z
ROG Mem TweakIt
Overwolf
ROG Keybot II
CloneDrive
Kaspersky® Anti-Virus
DAEMON Tools Software
ASUS WebStorage
Sonic Studio III
Sonic Radar III
RAMDisk
Aura
WinZip
ASUS Utilities
ROG GameFirst IV is only available for Windows 10/8.1 64-bit
Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *9
Windows® 7 32-bit *9
Windows® 7 64-bit *9
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
