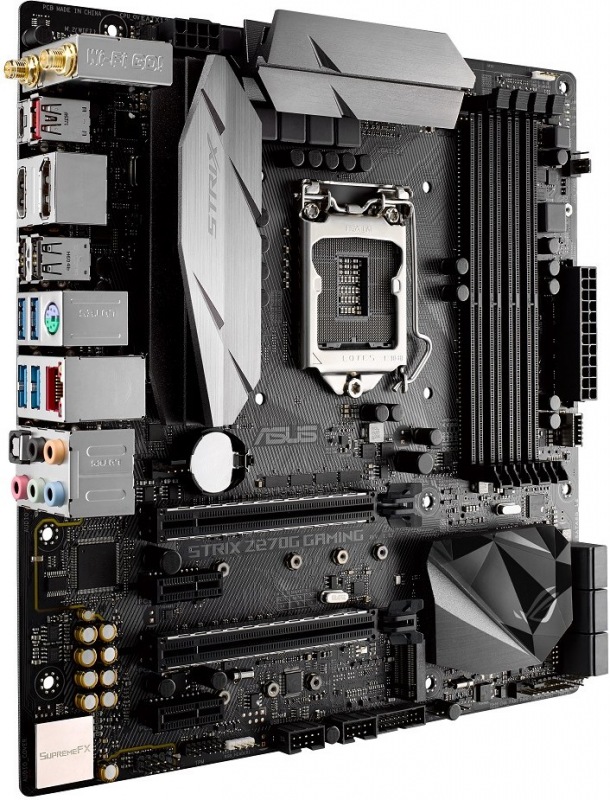

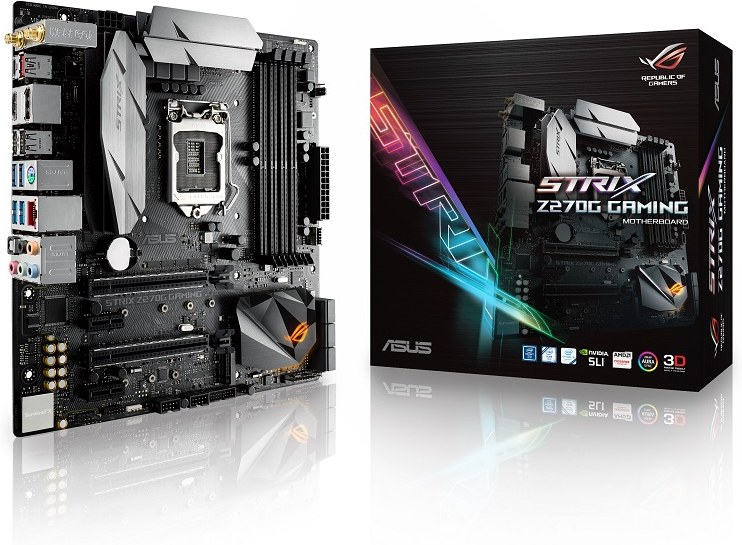

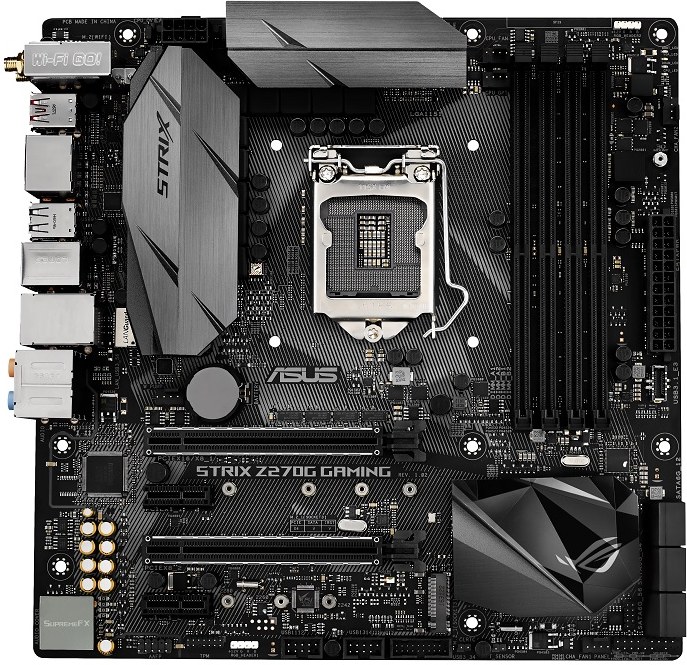

ASUS STRIX Z270G GAMING | 90MB0S80-M0EAY0

CPU

Intel® Socket 1151 for 7th/ 6th Generation Core™ i7/ Core™ i5/ Core™
i3/ Pentium®/ Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU
types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® Z270

Memory
4 x DIMM, Max. 64GB, DDR4
3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133
MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of
individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors
Lists).


Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/ DVI-D/ DisplayPort 1.2 ports
- Supports HDMI s max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort s max. resolution 4096 x 2304 @ 60 Hz *1
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD
Technology, Insider™
Supports až do 3 displays simultaneously


Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots
2 x PCIe 3.0/ 2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/ 2.0 x16 (max at x4 mode)
4 x PCIe 3.0/ 2.0 x1

Storage
Intel® Z270 Chipset:
1 x M.2 Socket 3, s M Key, type 2242/ 2260/ 2280/ 22110 storage
devices support (both SATA & amp; PCIE mode)*2
1 x M.2 Socket 3, s M Key, type 2242/ 2260/ 2280 storage devices
support (x4 PCIE mode)*3
6 x SATA 6Gb/ s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*4
Intel® Optane™ Memory Ready *5


LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel
Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR
recording input
- SupremeFX Shielding Technology
- Supports až do 32-Bit/ 192kHz playback *6
Audio Feature:
- SupremeFX Shielding™ Technology
- Optical S/ PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and
immersive sound s exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III

USB Ports
Intel® Z270 Chipset:
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z270 Chipset:
6 x USB 2.0 port(s)
ASMedia® USB 3.1 controller:
2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)

ROG Exclusive Features
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization s a single click! 5-Way Optimization
tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan
Xpert 4, and Turbo App together, providing better CPU performance,
efficient power saving, precise digital power control, whole system
cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple
thermistors
Gamer s Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/ O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ESD Guards
- PC Cleaner
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
Turbo APP
M.2 Onboard(The latest transfer technologies s až do 32Gb/ s data
transfer speeds)


Back I/ O Ports
1 x PS/ 2 keyboard/ mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Type-A + Type-C
4 x USB 3.0 (blue)
1 x Optical S/ PDIF out
5 x Audio jack(s)


Internal I/ O Ports
1 x AAFP connector
2 x RGB Header(s)
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x M.2 Socket 3 s M Key design, type 2242/ 2260/ 2280/ 22110
storage devices support (Supports both SATA & amp; PCIE SSD)
1 x M.2 Socket 3 s M Key, type 2242/ 2260/ 2280 storage devices
support (PCIE mode only)
6 x SATA 6Gb/ s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x DRCT header(s)
1 x CPU OV
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x High AMP Fan Header
1 x T_Sensor Connector
1 x AIO PUMP Header
3 x 3D Mount screw port(s)


Accessories
User s manual
ASUS Q-Shield
4 x SATA 6Gb/ s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x 10 in 1 ROG Cable Label(s)
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package
1 x ROG coasters


BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0,
Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ
Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory
information.

Manageability
WfM2.0, DMI3.0, WOL by PME, PXE

Operating System
Windows® 10 64-bit
Windows® 8.1 64-bit *7
Windows® 7 32-bit *7
Windows® 7 64-bit *7


Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note
1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor
daisy chain až do 3 displays.
*2 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode
device. Adjust BIOS settings to use a SATA device.
*3 The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode
device in X4 mode. Adjust BIOS settings to use SATA devices.
*4 These functions will work depending on the CPU installed.
*5 Intel® Optane Technology only supported when using 7th Generation
Intel® Processors. Before using Intel® Optane memory modules, ensure
that you have updated your motherboard drivers and BIOS to the
latest version from ASUS support website.
*6 Due to limitations in HDA bandwidth, 32-Bit/ 192kHz is not
supported for 8-Channel audio.
*7 Windows® 8.1 64-bit and Windows® 7 32/ 64-bit are only supported
when using 6th Generation Intel® Processors.
*8 ROG GameFirst IV is only available for Windows® 10/ 8.1 64-bit
*9 Support for the Bluetooth specification depends on the Windows
version. Win7/ 8.1 support až do Bluetooth 4.0.
