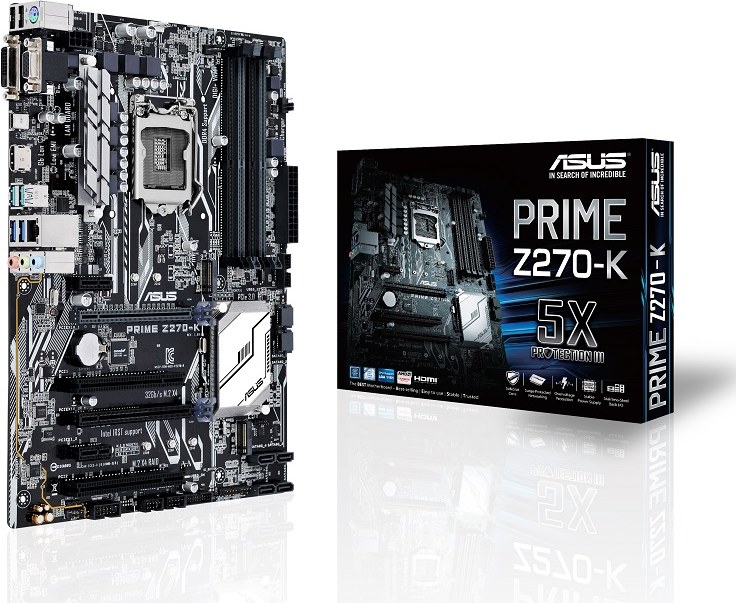

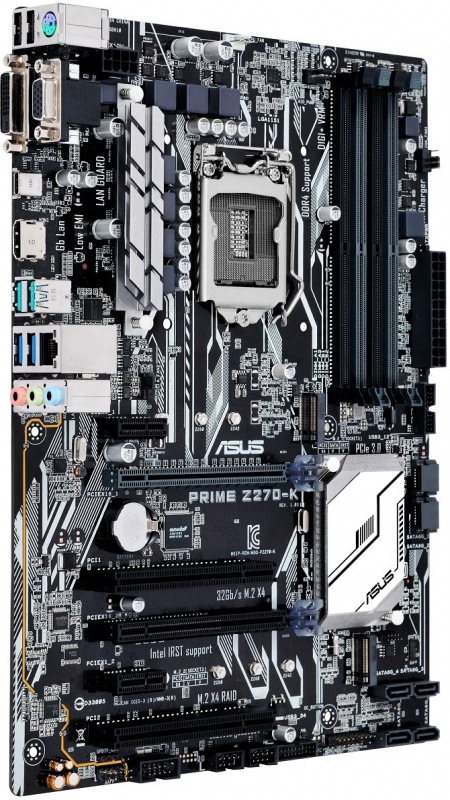

ASUS PRIME Z270-K | 90MB0S30-M0EAY0

CPU

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support list

Chipset
Intel® Z270

Memory
4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
The maximum memory frequency supported varies by processor.

Graphic
integrovaná Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB ports
- Supports VGA s max. resolution 1920 x 1200 @ 60 Hz
- Supports HDMI 1.4b s max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D s max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports až do 3 displays simultaneously

Multi-GPU Support
Supports AMD CrossFireX™ Technology

Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1
2 x PCI

Storage
1 x M.2 Socket 3*1,, s M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3*2,, s M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology*3
Intel® Optane™ Memory Ready *5

LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- LED-illuminated design - Brighten up your build s the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound s exceptional clarity and fidelity

USB Ports
ASMedia® USB 3.1 controller:
2 x USB 3.1 port(s) (2 at back panel, +teal blue, Type-A)
Intel® Z270 Chipset:
1 x USB 5Gb/s port(s) port(s)
Intel® Z270 Chipset:
6 x USB 3.0 port(s) (2 at back panel, +blue)
Intel® Z270 Chipset:
6 x USB 2.0 port(s) (2 at back panel, )

Special Features
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 7 Phase digital power design
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
M.2 Onboard(The latest transfer technologies s až do 32Gb/s data transfer speeds)

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.1 (teal blue)
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
1 x 8-channel Audio I/O

Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 s M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 s M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x AIO PUMP Header

Accessories
User s manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Operating System
Windows® 10 64-bit
Windows® 8 64-bit
Windows® 7 32-bit
Windows® 7 64-bit
6

Form Factor
ATX Form Factor
12.0 inch x 8.9 inch ( 30.5 cm x 22.6 cm )

Note
When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
2. When a device is installed on the M.2_2 socket, SATA_5/6 ports cannot be used.
3. These functions will work depending on the CPU installed.
4.Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
5. These functions will work depending on the CPU installed.
6. Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
