AirLive BU-2015, Bullet, 3M, OD, f4mm, PoE / DC, IR | BU-2015

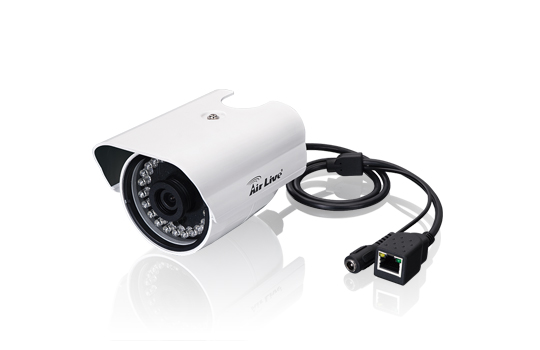

AirLive BU-2015

3-Megapixel Outdoor IR Nightvision Bullet IP Camera

PŘEHLED/ OVERVIEW
* 3-Megapixel 1/ 2.5” CMOS Sensor
* Up to 20fps at 3MP Resolution
* Support H.264/ MPEG4/ MJPEG Multi-streaming
* Mechanical IR-Cut Filter Removable
* 22 Units IR LED for 15M Distance
* Power over Ethernet (IEEE802.3af/ at)
* Compatible with ONVIF Standard
* 4mm/ F1.8 High Quality Lens
* Support Samba Server, Motion Detection and Email Notification
* MicroSD/ SDHC Card Support
* IP66 Weatherproof Housing
AirLive BU-2015 is a high-level 3-Megapixel network camera which is designed for professional surveillance and security applications. The built-in IR LEDs provides high quality of night time monitoring with 15M viewing distance in darkness.
Note: Please update FW to version 1.03.25 or above for 3MP resolution.
http:/ / www.airlivesecurity.com/ product/ BU-2015/ download

SPECIFIKACE/ SPECIFICATIONS
Camera
Camera Type
* Outdoor IR Bullet Type
Image Sensor
* 1/ 2.5" CMOS Sensor
Max. Resolution
* 2048 X 1536
Lens Type
* 4mm/ F1.8, Board Lens
Night Vision
* YES
IR Distance (Max.)
* 15M
Minimum Illumination
* Color: 0.05 Lux
* B/ W: 0 Lux (IR On)
Mechanical IR-Cut Filter
* Yes
Auto Iris
* None
Viewing Angle
* H67.6& deg;, V49.5& deg;
Analog Video Out
* None

Video
Video Compression
* H.264 High/ Main/ Baseline Profile, MPEG4 Simple Profile, MJPEG and 3GPP
Resolution and Frame Rate
* 20fps@2048x1536
* 30fps@1920x1080
* 30fps@1280x960
* 30fps@1280x720
* 30fps@720x480
* 30fps@640x480
* 30fps@320x240
Streaming
* Multi-profile streaming Streaming over UDP, TCP, or http 3GPP mobile view Configurable frame rate and bandwidth Support CBR and VBR
Image Processing
* AE, AWB
* Noise reduction
* Brightness, Sharpness, Contrast, Saturation
* Mirror Vertical / Horizontal
* Text, time and date OSD
* AirLive Clear Motion Technology for Moving Objects
Digital Zoom
* Yes
Shutter Time
* Auto, Manual: 1/ 15~1/ 10000sec, Day/ night dual programmable

Network
Ethernet
* One RJ45 Port; IEEE 802.3u Compliant 10/ 100 Mbps Fast Ethernet with Auto-MDIX
PoE
* IEEE802.3af/ at
Supported Protocols
* TCP/ IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP and RTCP
Security
* Password protection
* IP filter
* HTTPS

LED Indicator
Power LED
* Amber Color
Link/ Act. LED
* Green Color

General
Network Processor
* DSP Base
Power Supply
* DC5V/ 2A (Optional)
Power Consumption
* 8 Watts Max.

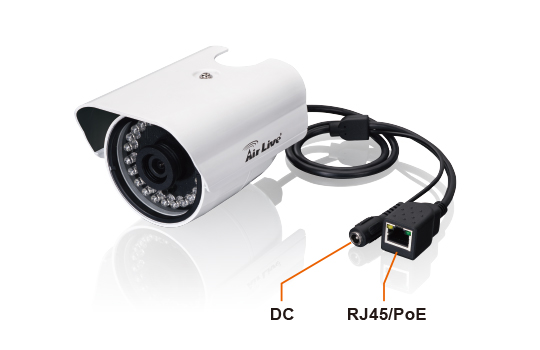

Connector
* RJ-45 10BaseT/ 100BaseTX
* 5V DC power jack
* Reset Button
Environment
* Operation Temp: -20& deg;C ~ 50& deg;C
* Humidity: 20% ~ 85% non-condensing
* Storage Temp: -20& deg;C ~ 60& deg;C
* Humidity: 0% ~ 90% non-condensing
Weather Proof
* IP66

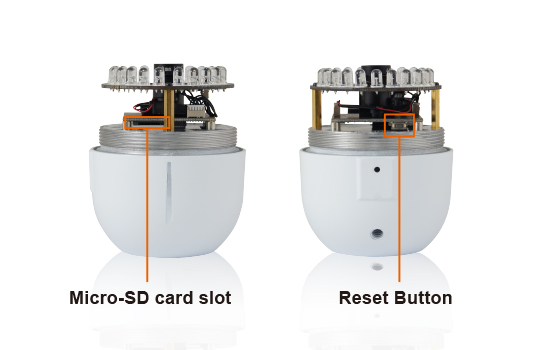

SD card slot
* 32G MicroSD/ SDHC
Dimension
* 73mm x 112mm

System Integration
Software
* Search & Installation- IP Wizard II, AirLive Campro mobile
Event Triggers
* Motion detection
Motion Detection
* Up to 3 zones
Event handler
* FTP or NAS file upload
* E-mail alter
UPNP
* Yes
Application Programming Interface
* ONVIF
* Open API for software integration
* SDK
Video Buffer
* 5 sec. pre-alarm / 5 sec. post-alarm, up to 3MB
Alarm Events
* File upload via FTP, NAS, E-mail
* Notification via email
* Save to SD card
Continuous Recording
* Yes
Certificate
* CE, FCC-Class A

Viewing System
OS
* WindowsR XP, Vista, 7
Browser
* IE 6.0 or later, Firefox 2.0 or later, Safari
Cell Phone
* With 3GPP player
Video Player
* VLC, Quick Time, Real Player, Core Player
