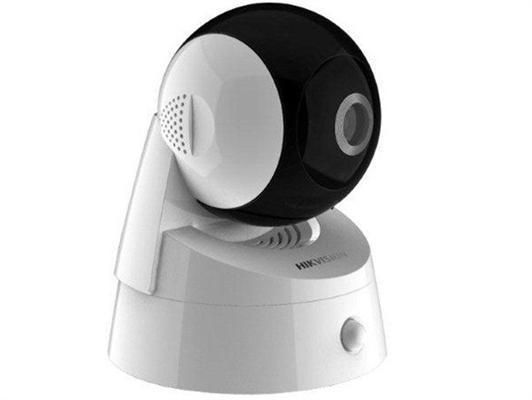

Hikvision IPC R2 PT DS-2CD2Q10FD-IW(4mm) | DS-2CD2Q10FD-IW(4mm)

DS-2CD2Q10FD-IW(4mm) - 1/ 4" Progressive CMOS, Pan/ tilt rotation, 1280x720:25fps(P)/ 30fps(N), SD card, Audio, Alarm IO, 10m IR, PIR, Wi-Fi


PŘEHLED

* 1/ 4” Progressive Scan CMOS
* Up to 1.0 megapixel resolution
* Support motorized Pan & Tilt
* Digital WDR
* 3D DNR
* IR range approx. 10 meters
* Support Wi-Fi, support WPS configuration with one touch (-W)
* Two-way audio
* Built-in microphone and speaker
* Support 128G on-board storage
* 5V DC±10%

TECHNICKÁ SPECIFIKACE

Camera
Image Sensor
* 1/ 4" progressive scan CMOS
Min. Illumination
* 0.01Lux @(F1.2, AGC ON) , 0.028Lux @(F2.0, AGC ON) , 0 Lux with IR
Shutter time
* 1/ 3 s ~ 1/ 100, 000 s
Lens
* 4mm@ F2.0, Angle of view
Lens Mount
* M12
Adjustment Range
* Pan: 0° - 355°, Tilt: -20° - 90°
Day& Night
* IR cut filter with auto switch
Wide Dynamic Range
* Digital WDR

Compression Standard
Video Compression
* H.264/ MJPEG
H.264 code profile
* Baseline Profile / Main Profile
Video bit rate
* 32Kbps~8Mbps
Audio Compression
* G.711/ G.722.1/ G.726/ MP2L2
Audio bit rate
* 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)

Max. Image Resolution
* 1280 × 720
Frame Rate
* 50Hz: 25fps(1280 × 720, 704 × 576, 640 × 480)
*60Hz: 30fps (1280 × 720, 704 × 576, 640 × 480)
Image Enhancement
* BLC/ 3D DNR/ ROI
Image Settings
* Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/ Night Switch
* Auto/ Schedule/ Triggered by Alarm In

Network
Network Storage
* Micro SD/ SDHC/ SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/ CIFS)
Alarm Trigger
* Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols
* Intrusion Detection, Line Crossing detection, Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Security
* User Authentication, Watermark, IP address filtering, Anonymous access
System Compatibility
* ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Wi-Fi Specification (-W)
Wireless Standards
* IEEE802.11b, 802.11g, 802.11n
Frequency Range
* 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
* 20/ 40MHz Support
Modulation Mode
* 802.11b
802.11g/ n
* OFDM
Security
* 64/ 128-bit WEP, WPA/ WPA2, WPA-PSK/ WPA2-PSK, WPS
Transmit Power
* 11b: 17±1.5dBm @ 11Mbps
* 11g: 14±1.5dBm @ 54Mbps
* 11n: 12.5±1.5dBm
Receive Sensitivity
* 11b: -90dBm @ 11Mbps (Typical)
* 11g: -75dBm @ 54Mpbs (Typical)
* 11n: -74dBm (Typical)
Transmission Rate
* 11b: 11Mbps
* 11g: 54Mbps
* 11n: up to 150Mbps
Wireless Range
* 50m(depend on environment)

General
Operating Conditions
* -30 & deg;C ~ 60 & deg;C
Humidity
*95% or less (non-condensing)
Power Supply
* 5 V DC +-177; 10%
Power Consumption
* Max. 7 W
IR Range
* 10 meters
PIR
* Angle: 80°, Range: 10m
Dimensions
* 100.8×124 mm
Weight
* 300 g
NOTE:
* "-W" series support Wi-Fi (802.11b/ g/ n) and the modules with Wi-Fi function don’t support the 802.1X protocol.
