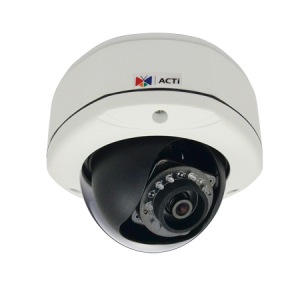

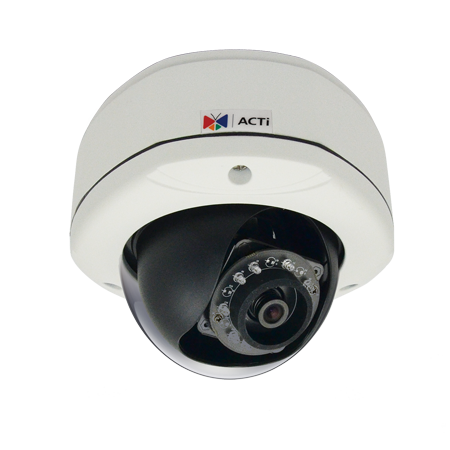

ACTi E72A, F.Dome, 3M, OD, f2.93mm, PoE, WDR, IR | E72A

ACTi Kamera 3M OD, f2.93mm, P, IK10




SPECIFICATIONS
Model
* E72A

Product Type
* Dome

Maximum Resolution
* 3MP

Application Environment
* Outdoor

Image Sensor
* Progressive Scan CMOS

Day / Night
* Yes

Superior Low Light Sensitivity
* No

Minimum Illumination
* Color: 0.1 lux, B/ W: 0 lux (IR LED on) at F2.0

Mechanical IR Cut Filter
* Yes

IR LED
* Yes, Adaptive IR (IR Exposure Compensation)

IR Working Distance
* 30m

Lens
* Fixed focal, f2.93mm / F2.0, Fixed iris, Fixed focus

Viewing Angle Adjustment
* Pan: 0& deg;-350& deg;,
* Tilt: 17& deg;-163& deg;,
* Rotate: 0& deg;-350& deg;

Lens Mount
* Board mount

Horizontal Viewing Angle
* 83.3& deg;

Compression
* H.264 High Profile, MJPEG

Maximum Frame Rate vs. Resolution
* 15 fps at 2048 x 1536
* 30 fps at 1920 x 1080
* 30 fps at 1280 x 720
* 30 fps at 800 x 600
* 30 fps at 640 x 480
* 15 fps at 320 x 240

Horizontal Resolution (TV lines)
* 1350 TVL

Multi-Streaming
* Dual streams

Wide Dynamic Range
* Basic WDR (74 dB)

Digital Noise Reduction
* DNR

S/ N Ratio
* 52 dB

Audio
* No

Network Protocol & Service
* TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Network Connector
* RJ-45

Digital Input/ Output
* No

Local Storage
* MicroSDHC/ MicroSDXC memory card slot (card not included)

Power Source
* PoE Class 2

Environmental Casing
* Weatherproof (IP67); Vandal proof (IK10)

Bundled Accessories
* No

Mount Type
* Surface, Pendant, Wall, Corner, Pole, Flush

Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server)
* Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection

Client PC Operating System
* Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP

PC Web Browser
* IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime

ONVIF Compliant
* Yes

Starting Temperature
* -20& deg;C ~ 50& deg;C

Operating Temperature
* -40& deg;C ~ 50& deg;C

Approvals
* CE, FCC, IP67, IK10

Warranty
* 3 Years
