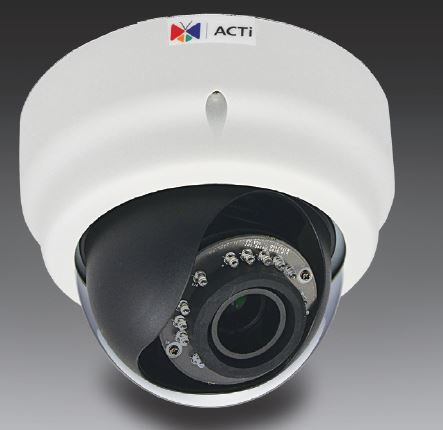

ACTi E61A, VF.Dome, 1M, ID, f2.8-12mm, PoE, WDR, IR | E61A

ACTi Kamera 1M ID, f2.8-12mm, P, IK09




SPECIFICATIONS
Device
* Device Type Indoor Dome Camera
* Image Sensor Progressive Scan CMOS
* Sensor size 1/ 4"
* Day / Night Yes
* Superior Low Light Sensitivity No
* Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400& deg;K); B/ W: 0 lux (IR LED on)
* Color to B/ W Switch ISP based switch, configurable
* Mechanical IR Cut Filter Yes
* IR Sensitivity Range 700~1100nm
* IR LED Adaptive IR LED (IR Exposure Compensation) x 15 (850nm)
* IR Working Distance 30 m (0 lux, 30 IRE, Gain 255, Auto shutter mode)
* Electronic Shutter 1/ 5 ~ 1/ 2, 000 sec (manual mode); 1/ 5 ~ 1/ 10, 000 sec (auto mode)

Lens
* Focal Length / Aperture Vari-focal, f2.8 - 12 mm / F1.4
* Iris Fixed iris
* Focus Manual focus
* Mount Type Board mount
* Horizontal Viewing Angle 59.8& deg; - 24.7& deg;
* Viewing Angle Adjustment Pan: 0& deg; - 350& deg;; Tilt: 17& deg; - 163& deg;; Rotate: 0& deg; - 350& deg;

Video
* Compression H.264 HP, MJPEG
* Max. Frame Rate vs. Resolution 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
* Multi-Streaming Simultaneous dual streams based on two configurations
* Bit Rate 28 Kbps - 6 Mbps (per stream)
* Bit Rate Mode Constant, Variable
* Image Enhancement Basic WDR (69 dB); White balance: automatic, hold, and manual; Brightness; Contrast;
* Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless
* Privacy Mask 4 configurable regions
* Text Overlay User defined text on video
* Image Orientation Image flip and mirror

Audio
* Compression 8 kHz, Mono, PCM, 16 bit encoding; G.711
* Audio-In Terminal block
* Audio-Out Terminal block

Network
* Protocol & Service TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
* Ethernet Port 1, Ethernet (10/ 100 Base-T), RJ-45 connector
* Security IP address filtering; HTTPs encryption; Password protected user levels; Anonymous login; IEEE802.1X network access control

Alarm
* Alarm Trigger Video motion detection (3 regions)
* Alarm Response Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots;
* Save video or snapshot to local storage; Upload video, snapshot to FTP; Activate external device through digital output

Interface
* Digital Input 1, Terminal block
* Digital Output 1, Terminal block
* Local Storage MicroSDHC/ MicroSDXC memory card slot (card not included)

General
* Power Source / Consumption PoE Class 2 (IEEE802.3af) / 5.95 W (IR on)
* Weight 538 g
* Dimensions & #8960; ( x H) 146 mm x 114 mm
* Environmental Casing Vandal Resistant (IK09 rated); Transparent dome cover
* Mount Type Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box
* Operating Humidity 10% ~ 85% RH
* Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09

Integration
* Unified Solution Fully compatible with ACTi software
* ISV Integration Software Development Kit (SDK) available; ONVIF compliant
* Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality)
* Safari with QuickTime installed, and other browsers with VLC installed (partial functionality)
