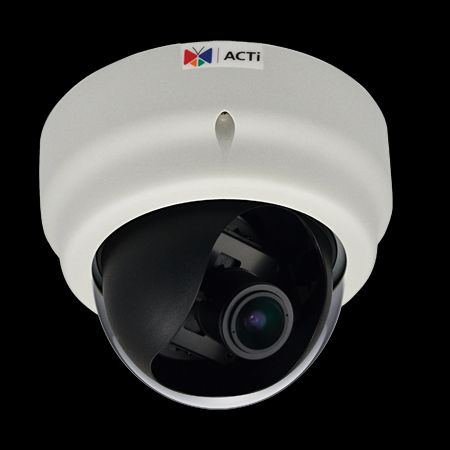

ACTi D61A, VF.Dome, 1.3M, ID, f2.8-12mm, PoE | D61A

ACTi Kamera 1.3M ID, f2.8-12mm, P, IK09




SPECIFICATIONS
Model
* D61A

Product Type
* Dome

Maximum Resolution
* 1.3MP

Application Environment
* Indoor

Image Sensor
* Progressive Scan CMOS

Day / Night
* No

Superior Low Light Sensitivity
* Yes

Minimum Illumination
* Color: 0.1 lux at F1.4

Mechanical IR Cut Filter
* No

IR LED
* No

Lens
* Vari-focal, f2.8-12mm / F1.4, Fixed iris, Manual focus

Viewing Angle Adjustment
* Pan: 0& deg;-350& deg;,
* Tilt: 17& deg;-163& deg;,
* Rotate: 0& deg;-350& deg;

Lens Mount
* Board mount

Horizontal Viewing Angle
* 83.0& deg;-31.1& deg;

Compression
* H.264 High Profile, MJPEG

Maximum Frame Rate vs. Resolution
* 30 fps at 1280 x 960
* 60 fps at 1280 x 720
* 30 fps at 800 x 600
* 30 fps at 640 x 480
* 15 fps at 320 x 240

Horizontal Resolution (TV lines)
* 950 TVL

Multi-Streaming
* Dual streams

Wide Dynamic Range
* No

Digital Noise Reduction
* DNR

S/ N Ratio
* 52 dB

Audio
* 2-way (Line-in, Line-out)

Network Protocol & Service
* TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Network Connector
* RJ-45

Digital Input/ Output
* 1/ 1

Local Storage
* MicroSDHC/ MicroSDXC memory card slot (card not included)

Power Source
* PoE Class 2

Environmental Casing
* Vandal Resistant (IK09)

Bundled Accessories
* No

Mount Type
* Surface, Pendant, Wall, Corner, Pole, Flush, Gang Box

Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server)
* Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection

Client PC Operating System
* Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP

PC Web Browser
* IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime

ONVIF Compliant
* Yes

Starting Temperature
* -10& deg;C ~ 50& deg;C

Operating Temperature
* -10& deg;C ~ 50& deg;C

Approvals
* CE, FCC, IK09

Warranty
* 2 Years

Dokumenty:

• Odkaz na web výrobce [url]
• Datasheet [pdf]
