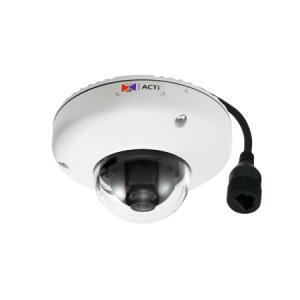

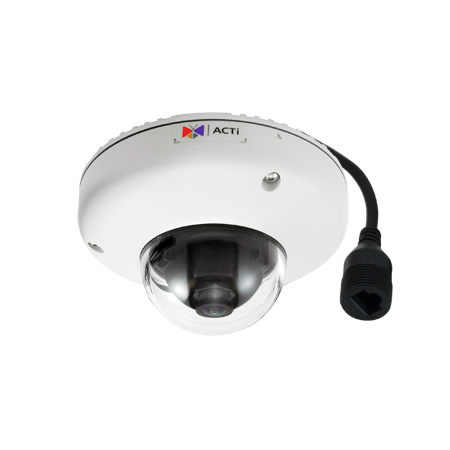

ACTi E936, MiniDome, 2M, OD, f2.55mm, PoE, WDR | E936

2MP Video Analytics Outdoor Mini Dome with Extreme WDR, SLLS, Fixed lens, f2.55mm/ F2.2 (HOV:110.3°), H.264, 1080p/ 60fps, 2D+3D DNR, Audio, MicroSDHC, PoE, IP68, IK10, EN50155, Built-in Analytics


SPECIFICATIONS

Model
* E936

Product Type
* Mini Dome

Maximum Resolution
* 2 MPx

Application Environment
* Outdoor

Image Sensor
* Progressive Scan CMOS

Sensor Size
* 1/ 2.8 "

Day / Night
* No

Low Light Sensitivity
* Superior

Minimum Illumination
* Color: 0.1 lux at F2.2 (30 IRE, 2400 K)

Mechanical IR Cut Filter
* No

IR LED
* No

Horizontal Resolution (TV Lines)
* 1100 TVL

S/ N Ratio
* 56 dB

Lens
* Fixed focal, f2.55mm / F2.2, Fixed iris, Fixed focus

Lens Mount
* Board mount

Horizontal Viewing Angle
* 110.3& deg;

Compression
* H.264 (Baseline / Main / High profile), MJPEG

Maximum Frame Rate vs. Resolution
* 60 fps at 1920 x 1080
* 60 fps at 1280 x 720
* 30 fps at 640 x 480
* 30 fps at 320 x 240

Multi-Streaming
* Simultaneous triple streams

Wide Dynamic Range
* Extreme WDR (145 dB)

Image Enhancement
* White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer, Defogging

Digital Noise Reduction
* 2D + 3D DNR

Built-in Analytics
* Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object

VMS-based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server)
* Face Detection, Object Based Motion Detection, Tamper, People Counting, Line Crossing, Enter Area, Exit Area, Appear in Area, Missing Object, Unattended Object, Crowd Detection, Direction Detection, Vehicle Counting, Heat Map, License Plate Recognition, Speed Estimation

Image Orientation
* Rotation, Flip, Mirror

Audio
* 1-way, Mic-in, Line-in

Network Protocol & Service
* TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Network Connector
* RJ-45

Local Storage
* MicroSDHC memory card slot (card not included)

Power Source
* PoE Class 2 (IEEE802.3af)

Power Consumption
* 3.92 W (PoE)

Environmental Casing
* Weatherproof (IP68), Vandal proof (IK10), Vibration prrof (EN50155)

Mount Type
* Surface, Gang box, Pendant, Wall Mount, Converter for NPT Standard Mount

Starting Temperature
* -20& deg;C ~ 50& deg;C

Operating Temperature
* -20& deg;C ~ 50& deg;C

Approvals
* CE, FCC, IP68, IK10, NEMA 4X, EN50155

ONVIF Compliant
* Yes, Profile S, Profile G, (To be available through future firmware upgrade)

Web Browser
* IE 8.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime

Warranty
* 2 Years
