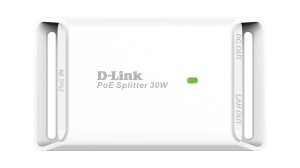

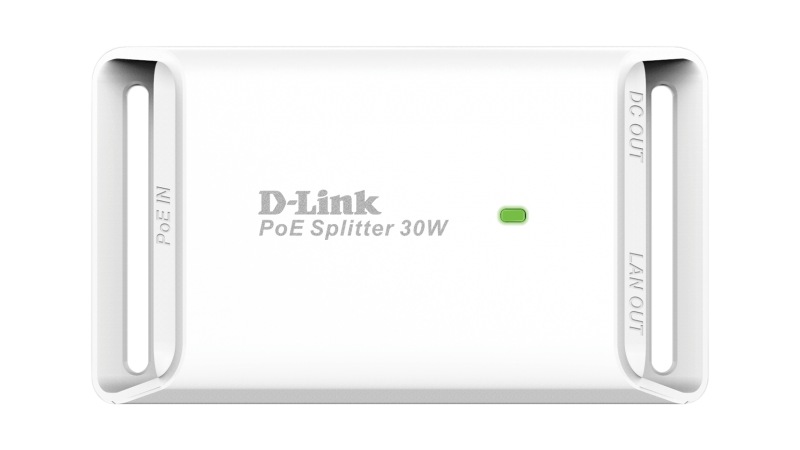

D-Link DPE-301GS 1-Port Gigabit PoE Splitter | DPE-301GS

OVERVIEW


The DPE-301GS Gigabit PoE+ Splitter provides Gigabit connectivity and high wattage electrical power to legacy devices that do not support PoE, by separating power and data from a PoE source.

Compliant with the 802.3at and 802.3af PoE standards, it can effectively turn any device into a PoE device, giving you the ability to mount your non-PoE device virtually anywhere in a building since it doesn’t require a power outlet.

Remotely connect and power a wide variety of power demanding devices with the
DPE-301GS. The DPE-301GS outputs up to 5 V DC, 9 V DC, or 12 V DC, making it better able to cope with the demands of multi-feature surveillance cameras, 802.11ac wireless access point, network switches and security equipment.

Network administrators can remotely connect and power a wide variety of power demanding devices and deploy wireless access points and network cameras in hard-to-reach places such as entryways, rooftops, ceilings or any other location not in close proximity to a power outlet.

TECHNICAL SPECS

Ports

PoE In

*Supports half/ full-duplex operation
*10/ 100/ 1000BASE-T port
*IEEE 802.3 compliant
*IEEE 802.3u compliant
*IEEE 802.3ab compliant
*IEEE 802.3at compliant
*IEEE 802.3af compliant

LAN Out

*Supports half/ full-duplex operation
*10/ 100/ 1000BASE-T port
*IEEE 802.3 compliant
*IEEE 802.3u compliant
*IEEE 802.3ab compliant

LED Indicator

*Green: Power On

Physical

Dimensions (L x W x H)

*109.8 x 62.2 x 24.5 mm

Weight

*98 grams (3.46 ounces)

Power Output

*5 V DC up to 2.5 A
*9 V DC up to 2 A
*12 V DC up to 2 A

Included Power Adapter Cables

*5.5 mm to 3.8 mm male to male
*5.5 mm to 5.5 mm male to male

Temperature

*Operating: 0 to 60 °C
*Storage: -30 to 70 °C

Humidity

*Operating: 5% to 95% non-condensing
*Storage: 5% to 95% non-condensing

Certifications

*CE
*FCC
*VCCI
*RCM
*RoHS
