D-Link DCS-5000L / E WiFi Day&Night Pan / Tilt Camera | DCS-5000L/E

OVERVIEW

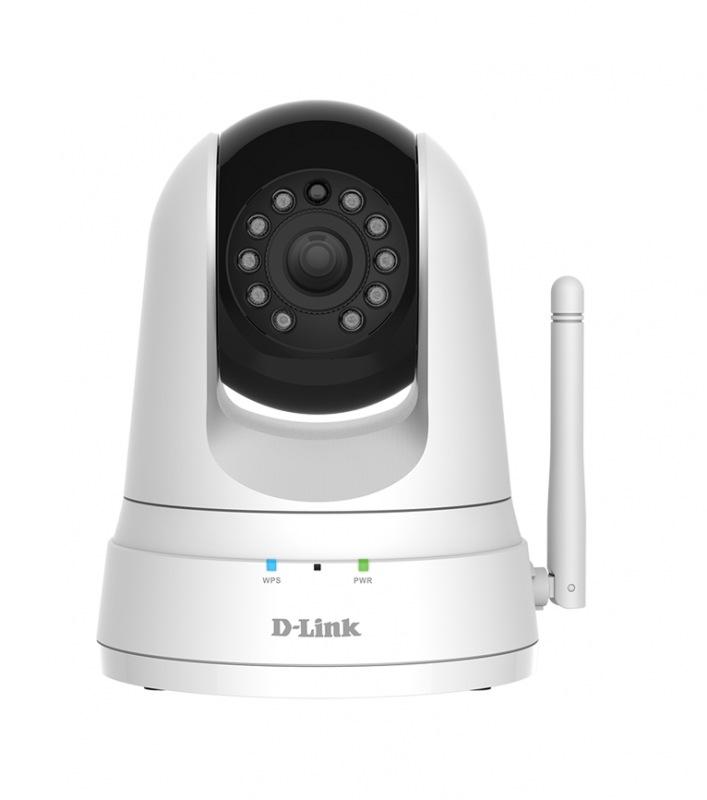

The DCS-5000L Wi-Fi Pan & Tilt Day/ Night Camera provides a range of features to help you effectively monitor large areas of your home or small office at all hours of the day.
The pan/ tilt function allows the camera to patrol a wide area and built-in microphone allows you to hear.
The built-in night vision provides around the clock surveillance regardless of the lighting conditions, allowing you to see up to 8 metres even in complete darkness.
You can place the DCS-5000L anywhere in your home or small office with the choice of either wired or wireless connectivity. Wireless connectivity gives you the flexibility to move the camera from place to place should your surveillance requirements change.
Using the free mydlink™ Lite app for iOS and Android smartphones and tablets, you can connect and setup the DCS-5000L without turning on a computer. A step-by-step guide has your camera up and running in a matter of minutes. You can quickly and easily view your camera feed from anywhere with a wireless or 3G/ 4G LTE connection.

Technical Specifications

Camera

Camera Hardware Profile

*1/ 5” VGA progressive CMOS sensor
*8 metre IR illumination distance
*Minimum illumination: 0 lux with IR LEDs on
*Built-in Infrared-Cut Removable (ICR) Filter module
*4X digital zoom
*Lens: Fixed length 2.2 mm
*Aperture: F2.4
Angle of view:
*(H) 57°
*(V) 42°
*(D) 68°
*Exposure Time: 1/ 15 to 1/ 15, 000 sec.
*Built-in microphone

Image Features

*Configurable image size, quality, frame rate, and bit rate
*Time stamp and text overlay
*Configurable motion detection windows
*Adjustable brightness, saturation, contrast
*Flip & mirror
*Pre-event snapshot/ recording

Video Compression

*MJPEG multi-streaming
*JPEG for still images

Video Resolution

*640 x 480 at frame rates up to 20 fps; 320 x 240, 160 x 112 at frame rates up to 30 fps
*JPEG Quality: Very Low, Low, Medium, High, Very High

Video Features

*AGC
*AWB
*AES

Audio Compression

*PCM

Connectivity

*10/ 100 BASE-T Ethernet port
*802.11n/ g/ b wireless

Pan/ Tilt

Pan Range

*-170° to +170° (total 340°)*

Tilt Range

*-25° to +95° (total 120°)*

Angular Velocity

*16° per second*

Step Setting

*Pan 1°/ 2°/ 3°/ 4°/ 5°(default)/ 10°/ 15°/ 20°/ 25°/ 30°/ per click
*Tilt: 1°/ 2°/ 3°/ 4°/ 5°(default)/ 10°/ 15°/ 20°/ 25°/ 30°/ per click

Network

Connectivity

*802.11n/ g/ b wireless
*10/ 100 BASE-TX Fast Ethernet

Network Protocols

*IPV4, ARP, TCP, UDP, ICMP
*DHCP Client
*NTP Client (D-Link)
*DNS Client
*DDNS Client (D-Link)
*SMTP Client
*FTP Client
*HTTP Server
*PPPoE
*UPnP Port Forwarding
*LLTD

Security

*WPS
*WEP
*WPA-PSK, WPA2
*HTTP digest encryption
*Password authentication

Advanced Features

Event Management

*Event notification and uploading of snapshots/ video clips via e-mail (SMTP) or FTP
*Motion Detection

Remote Access

Remote Management

*Configuration accessible via web browser

Mobile support

*mydlink Lite app for iOS and Android
*mydlink+ app for iOS and Android

General

System Requirements for Web Interfaces

*Operating system: Microsoft Windows Vista/ 7/ 8/ 101, Mac OS X 10.7
*Browser: Internet Explorer 8/ Firefox 12/ Safari 6/ Chrome 202 or higher with Java and/ or ActiveX installed and enabled (mydlink portal only)

Weight

*Device: 292.8 grams (0.65 lbs)*
*Stand: 60.8 grams (0.13 lbs)

Power

*Input: 100-240 V AC, 50/ 60 Hz*
*Output: 5 V DC, 1.5 A Micro-USB

Power Consumption

*4.8 watts*

Temperature

*Operating: 0 to 40 °C
*Storage: -25 to 70° C

Humidity

*Operating: 20% to 85% non-condensing
*Storage: 5% to 95% non-condensing

Certifications

*CE
*CE LVD
*FCC
*C-Tick

Dimensions

*116.4 x 109.1 x 133.6 mm (Camera only)
*116.4 x 109.1 x 230.0 mm (Including mounting bracket)
