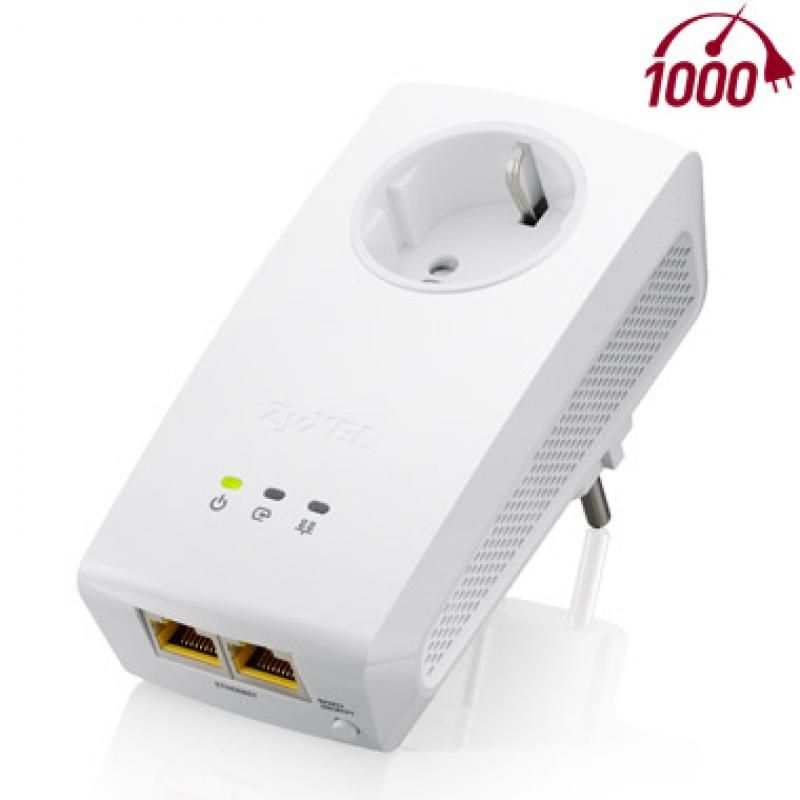

ZyXEL 1Gbps Powerline Eth. Adapter PLA5256 2 pack | PLA5256-EU0201F

PŘEHLED


You have a wired network device in another room that needs Internet connection, but you don’t want the mess running a long Ethernet cable to it? Grab a ZyXEL PLA5256, 1000 Mbps Powerline Pass-Thru 2-Port Gigabit Ethernet Adapter. The PLA5256 utilizes the latest HomePlug AV2 technology that delivers wired speed of up to 1000 Mbps* through your power outlets - great for streaming HD video contents or playing intensive multiplayer online games. The PLA5256 features two Ethernet ports, making it perfect for connecting living room network devices such as set top boxes or video game consoles. With the convenient pass-through power outlet design, it doesn’t block the existing wall power outlets from other devices that require it.

Technické parametry

System Specifications
Standard
*Compliant with HomePlug AV2
*IEEE 1901 and HomePlug AV standard
Powerline Data Rate
*Transmit: up to 1000 Mbps*
*Receive: up to 1000 Mbps*
Access Methods
*CSMA/ CA channel-access schemes
HomePlug Modulation
*OFDM symbol modulation
*QAM 4096/ 1024/ 256/ 64/ 16
*QPSK, BPSK, ROBO carrier modulation schemes
Range
*Max. range up to 300 meters over power line
Security
*128-bit AES encryption
Quality of Service (QoS)
*Supports up to 4-level type QoS
Frequency Band
*2 MHz to 86 MHz
IGMP
*IGMP v1/ v2/ v3
System Requirements
*Operating systém: independent
*Ethernet: RJ-45
*Utility software OS support: Microsoft Windows XP/ Vista/ 7/ 8

Hardware Specifications
*Ethernet interface: Two 10/ 100/ 1000 Mbps RJ-45 connectors with auto MDI/ MDIX support
*LED indicators:
*Power on/ off
*Powerline network quality:
Green: Best/ Amber: Better/ Red: Good
*Ethernet link/ activity
Button:
*Encrypt/ Reset button
*Power rating: 100 to 240 V AC, 50/ 60 Hz
*Power consumption:
*Full operation: 5.5 watt max.

Physical Specifications
*Item dimensions (WxDxH): 125 x 65 x 42 mm
*Item weight: 215 g
*Packing dimensions (WxDxH): 215 x 141 x 94 mm
Packing weight:
*Single pack: 310 g
*Starter kit: 550 g

Environmental Specifications
Operating Environment
*Temperature: 0& deg;C to 40& deg;C
*Humidity: 10% to 90% (Non-condensing)
Storage Environment
*Temperature: -30& deg;C to 70& deg;C
*Humidity: 10% to 95% (Non-condensing)
Certification
*Safety: CE-LVD, BSMI
*EMC: CE, FCC, ICES, BSMI
Packing Contents
*Powerline adapter
*Ethernet cable
*Quick start guide
*Warranty card
