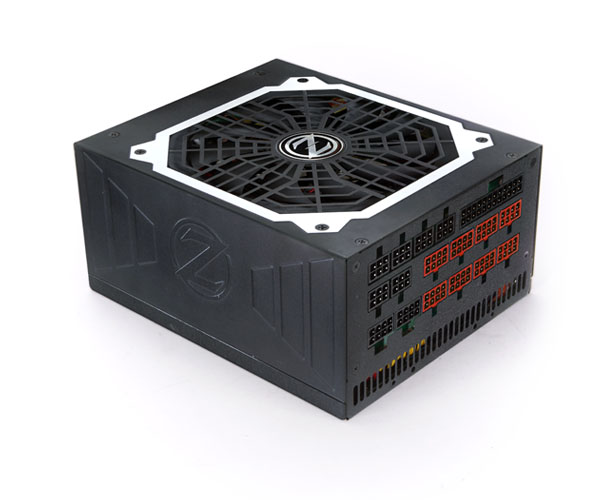

Zdroj Zalman ZM750-ARX 750W 80+ Platinum, aPFC, 13 | ZM750-ARX

AC Input Range:

Voltage 100-240VAC±10%
Frequency 50Hz ~ 60Hz±3

AC Input Current:
100VAC 10-5A
240VAC 10-5A

PFC Type Active PFC
Power Factor Correction Max 99%

Inrush Current Limit (@ Cold Start at 25C):
100VAC Max 50A
240VAC Max 50A

Efficiency Max 94% @ 230VAC, Typical load

DC Output Voltage Regulation (At Full Load):
Vout Regulation Range
+3.3VDC ±5% +3.14 ~ +3.47V
+5VDC ±5% +4.75 ~ +5.25V
+12VDC ±5% +11.4 ~ 12.6V
-12VDC ±10% -10.8 ~ -13.0V
+5VSB ±5% +4.75 ~ +5.25V

DC Output Ripple & Noise (At Full Load):
Vout Standard Range
+3.3VDC 50mV
+5VDC 50mV
+12VDC 120mV
-12VDC 120mV
+5VSB 50mV

Vout Output Load Rating Combined Power
I min I max I peak

+3.3V 0.1A 25A 120W 750W
+5V 0.2A 22A 120W 750W
+12V 0.2A 62A 744W 750W
-12V 0.0A 0.3A 3.6W 750W
+5VSB 0.0A 2.5A 12.5W 750W

Ambient Temperature:
Operation 0 ~ 40?C
Storage -20 ~ 70?C

Ambient Humidity:
Operation 5% ~ 95% RH
Storage 5% ~ 95% RH

Dimensions 180(D) x 150(W) x 86(H)mm
Weight 2.9Kg

Protection Functions:
Over-Current Protection(OCP)
Over-Voltage Protection(OVP)
Under-Voltage Protection(UVP)
Short-Circuit Protection(SCP)
Over-Power Protection(OPP)
Over-Temperature Protection(OTP)

Connectors:
MB (20+4Pin) 1x
ATX12V (4+4Pin) 1x
EPS12V (8Pin) 1x
PEI-Ex (6+2Pin) 4x
SATA (5pin) 12x
Periphal (4pin) 6x
FDD (4pin) 1x
