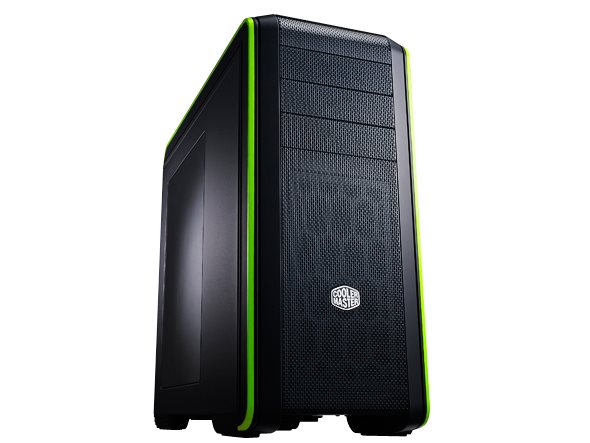

case Cooler Master miditower CM-693, ATX, černo-zelený průhledný bok, USB3.0, bez zdroj | CMS-693-GWN1

Model Number CMS-693-GWN1 (with side panel window)

Materials Polymer, mesh front bezel
Dimensions (W x H x D) 230 x 507 x 502 mm / 9.1 x 20.0 x 19.8 inch
Net Weight 8.9 kg / 19.6 lbs 8.7 kg / 19.2 lbs
M/ B Type microATX, ATX
5.25" Drive Bays 3 (exposed)
3.5" Drive Bays 7 (hidden) 3 (hidden)
2.5" Drive Bays 10 (hidden; 7 from the HDD/ SSD combo cages, 1 under the ODD cage, 1 behind the M/ B tray, 1 at the bottom) 5 (hidden); 3 from the HDD/ SSD combo cages, 2 from M/ B tray, or 5.25" bay, or bottom Panel
I/ O Panel USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports AC97 / HD Audio) USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports HD Audio)
Expansion Slots 7+1
Cooling System Top: 120/ 140mm fan x 2, or 200mm fan x 1 (optional)
Front: 200mm fan x 1 (installed), or 120/ 140mm fan x 2 , 180mm fan x 1(optional)
Rear: 120mm fan x 1 (installed)
Side: 120mm fan x 2 or 180/ 200mm fan x 1(optional) - for CMS-693-KKN1 (standard version) only
Bottom: 120mm fan x 1 (optional)
HDD cage: 120mm fan x 1 (optional) Top: 120/ 140mm fan x 2, or 200mm fan x 1 (optional)
Front: 120/ 140mm fan x 2 (installed 1 x 140mm fan), or 200/ 180mm fan x 1 (optional)
Rear: 120mm fan x 1 (installed)
Bottom: 120mm fan x 1 (optional)
Power Supply Type Standard ATX PS2 Standard ATX PS2 (optional)
Maximum Compatibility VGA card length:
423 mm / 16.6 inch (without cage)
312mm / 12.3 inch (with SSD cage)
280mm / 11.0 inch (with HDD cage)
CPU cooler height: 171mm / 6.7 inch VGA card length:
423 mm / 16.6 inch (w/ o cage)


CPU cooler height: 171mm / 6.7 inch
