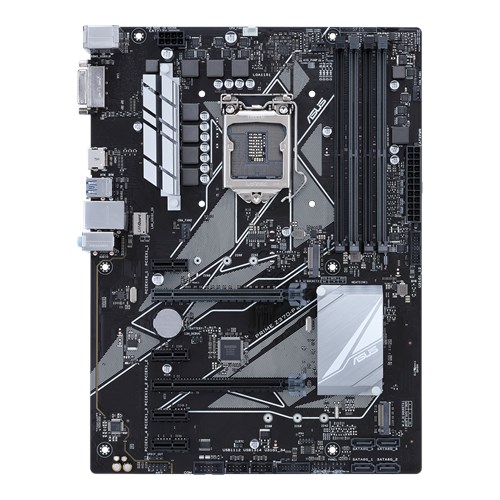

ASUS PRIME Z370-P | 90MB0VH0-M0EAY0

Základní informace

*LGA1151 socket pro procesory 8th-gen Intel® Core™
*5X Protection III:
*Intel® Optane memory
*Herní konektivita: Dual M.2 a USB 3.1 Gen 1

Technické specifikace:
Formát: ATX (30, 5 x 22, 6 cm )
CPU: Intel® Socket 1151 for 8th Generation Core™ Processors (Turbo Boost 2.0)
Čipová sada: Intel® Z370
Operační paměť: 4 x DIMM, max. 64GB DDR4 až 4000 MHz (přetakt.), NON-ECC, XMP
Lan: Realtek® RTL8111H/ ASUS LAN Guard
Zvuk: Realtek® S1220A 8-mi kanálový High Definition Audio CODEC featuring Crystal Sound 3
Grafická karta: V závislosti na CPU

Úložný prostor:
-2 x M.2 Socket 3*1, , with M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode)
-4 x SATA 6Gb/ s port(s), gray
-Support Raid 0, 1, 5, 10
-Intel® Optane™ Memory Ready

Rozšiřující sloty:
-1 x PCIe 3.0/ 2.0 x16 (x16, x8/ x4+x4)
-1 x PCIe 3.0/ 2.0 x16 (max at x4 mode)
-4 x PCIe 3.0/ 2.0 x1

Externí porty:
-1 x PS/ 2 keyboard/ mouse combo port(s)
-1 x DVI-D
-1 x HDMI
-1 x LAN (RJ45) port(s)
-4 x USB 3.1 Gen 1 (blue) Type-A
-2 x USB 2.0
-3 x Audio jack(s)

Interní porty:
-2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
-2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
-2 x M.2 Socket 3 with M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode)
-1 x COM port(s) connector(s)
-4 x SATA 6Gb/ s connector(s)
-1 x CPU Fan connector(s) (1 x 4 -pin)
-2 x Chassis Fan connector(s) (2 x 4 -pin)
-1 x S/ PDIF out header(s)
-1 x 24-pin EATX Power connector(s)
-1 x 8-pin ATX 12V Power connector(s)
-1 x Front panel audio connector(s) (AAFP)
-1 x Clear CMOS jumper(s)
-1 x System panel connector
-1 x AIO PUMP Header

Příslušenství:
-User s manual
-I/ O Shield
-2 x SATA 6Gb/ s cable(s)
-1 x M.2 Screw Package
-1 x SCD

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 6.0...

Více na stránkách https:/ / www.asus.com/ us/ Motherboards/ PRIME-Z370-P/ specifications/
