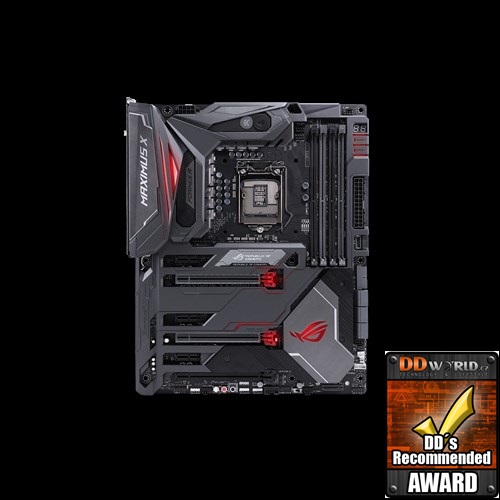

ASUS MAXIMUS X FORMULA | 90MB0VN0-M0EAY0

Technické specifikace:

Formát: ATX (30, 5 x 24, 4 cm )
CPU: Intel® Socket 1151 for 8th Generation Core™ Processors (turbo boost 2.0)
Čipová sada: Intel® Z370
Operační paměť: 4 x DIMM, max. 64GB DDR4 až 4000 MHz (přetakt.), NON-ECC, XMP
Lan: Intel® I219V/ Anti-surge LANGuard/ ROG GameFirst IV
Bezdrátová síť:Wi-Fi 802.11 a/ b/ g/ n/ ac, Bluetooth V4.2
Zvuk: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
Grafická karta: V závislosti na CPU

Úložný prostor:
-1 x M.2 Socket 3, with M Key, type 2242/ 2260/ 2280/ 22110 storage devices support (both SATA & PCIE mode)
-1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
-6 x SATA 6Gb/ s port(s)
-Support Raid 0, 1, 5, 10
-Supports Intel® Smart Response Technology
-Intel® Rapid Storage Technology supports
-Intel® Optane™ Memory Readyd

Rozšiřující sloty:
-2 x PCIe 3.0/ 2.0 x16 (x16, x8/ x8, or x8/ x4+x4)
-1 x PCIe 3.0/ 2.0 x16 (x4 mode, black)
-3 x PCIe 3.0/ 2.0 x1

Externí porty:
-1 x DisplayPort
-1 x HDMI
-1 x LAN (RJ45) port(s)
-1 x USB 3.1 Gen 2 (red)Type-A
-1 x USB 3.1 Gen 2 (black)USB Type-CTM
-4 x USB 3.1 Gen 1 (blue)
-4 x USB 2.0
-1 x Optical S/ PDIF out
-5 x Audio jack(s)
-1 x Clear CMOS button(s)
-1 x USB BIOS Flashback Button(s)
-1 x ASUS 2x2 Wi-Fi 802.11 a/ b/ g/ n/ ac and Bluetooth v4.2 module

Interní porty:
-2 x Aura Addressable Strip Header(s)
-2 x Aura RGB Strip Headers
-1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
-1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
-1 x M.2 Socket 3 with M Key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA mode & X4 PCIE mode)
-1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
-6 x SATA 6Gb/ s connector(s)
-1 x CPU Fan connector(s) (1 x 4 -pin)
-1 x CPU OPT Fan connector(s) (1 x 4 -pin)
-3 x Chassis Fan connector(s) (3 x 4 -pin)
-1 x H_AMP fan connector
-1 x W_PUMP+ connector (1 x 4 -pin)
-1 x AIO_PUMP connector (1 x 4 -pin)
-1 x 24-pin EATX Power connector(s)
-1 x 8-pin ATX 12V Power connector(s)
-1 x Front panel audio connector(s) (AAFP)
-1 x System panel(s) (Q-Connector)
-1 x MemOK! button(s)
-1 x Slow Mode switch(es)
-1 x Reset button(s)
-1 x LN2 Mode jumper(s)
-1 x Safe Boot button
-1 x ReTry button
-1 x EXT_Fan header
-1 x W_IN header
-1 x W_OUT header
-1 x W_FLOW header
-1 x Thermal sensor connector
-1 x Start button
-1 x USB 3.1 Gen 2 front panel connector

Příslušenství:
-User s manual
-1 x ROG logo plate sticker
-6 x SATA 6Gb/ s cable(s)
-1 x M.2 Screw Package
-1 x CPU installation tool
-1 x Supporting DVD
-1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/ b/ g/ n/ ac compliant)
-1 x SLI HB BRIDGE(2-WAY-M)
-1 x ROG big sticker
-1 x Q-Connector
-1 x M.2 bracket
-1 x Extension Cable for RGB strips (80 cm)
-1 x Extension cable for Addressable LED
-1 x ROG coaster(s)
-1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 6.0...

Více na stránkách https:/ / www.asus.com/ Motherboards/ ROG-MAXIMUS-X-FORMULA/ specifications/
