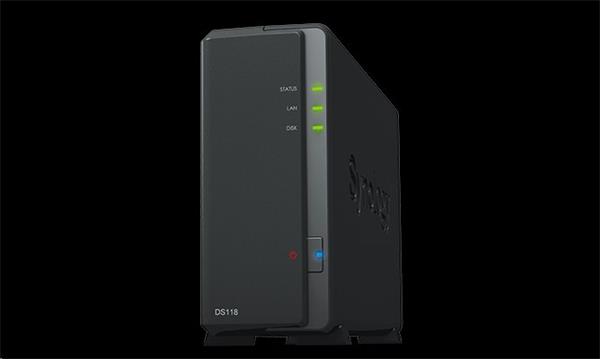

Synology™ DiskStation DS118 1x HDD NAS | DS118

Hardware Specifications

CPU
CPU Model Realtek RTD1296
CPU Architecture 64-bit
CPU Frequency Quad Core 1.4 GHz
Hardware Encryption Engine
Hardware Transcoding Engine 10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30
Memory
System Memory 1 GB DDR4
Storage
Drive Bays 1
Compatible Drive Type* (See all supported drives)
3.5" SATA HDD
2.5" SATA HDD (with optional 2.5" Disk Holder)
2.5" SATA SSD (with optional 2.5" Disk Holder)
Maximum Internal Raw Capacity 12 TB (12 TB drive x 1) (Capacity may vary by RAID types)
Maximum Single Volume Size 108 TB
Notes
"Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)
External Ports
RJ-45 1GbE LAN Port 1
USB 3.0 Port 2
File System
Internal Drives EXT4
External Drives
EXT4
EXT3
FAT
NTFS
HFS+
exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 166 mm x 71 mm x 224 mm
Weight 0.7 kg
Others
System Fan 60 mm x 60 mm x 1 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode
Brightness adjustable front LED indicators
Power Recovery
Noise Level* 16.7 dB(A)
Scheduled Power On/ Off
Wake on LAN/ WAN
Power Supply Unit / Adapter 36W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/ 60 Hz, Single Phase
Power Consumption* 9.4 W (Access)
4.22 W (HDD Hibernation)
British Thermal Unit 32.1 BTU/ hr (Access)
14.41 BTU/ hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
FCC Class B
CE Class B
BSMI Class B
Warranty 2 Years
Notes Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 1
Maximum iSCSI Target Number 10
Maximum iSCSI LUN 10
SSD TRIM
Supported RAID Type Basic
File Sharing Capacity
Maximum Local User Accounts 2048
Maximum Local Groups 256
Maximum Shared Folder 256
Maximum Shared Folder Sync Tasks 2
Maximum Concurrent CIFS/ AFP/ FTP Connections 200
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Log Center
Syslog Events per Second 100
Add-on Packages (learn more about the complete add-on package list)
Chat
Maximum Users 500
Notes
The number of concurrent HTTP connections for Chat was configured to the maximum.
CPU and RAM usage were both under 80% when the number of maximum users was reached.
Cloud Station Server
Maximum Number of Concurrently Connected Devices 200
Maximum Number of Synced Files (ext4) 100, 000 / single file reaction time 617 ms
Notes
The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing.
File reaction time refers to the preparation time required for other devices to start downloading a 1KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing.
Non-encrypted shared folders were used during the aforementioned testing.
Download Station
Maximum Concurrent Download Tasks 30
exFAT Access (optional)
Media Server
DLNA Compliance
Office
Maximum Users 100
Maximum Simultaneous Editing Users 30
Notes
CPU and RAM usage were both under 80% when the number of maximum users was reached.
For tested models with expandable memory, the maximum amount of RAM was installed.
Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Surveillance Station
Maximum IP cam (Licenses required) 15 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 450 FPS @ 720p (1280x720)
180 FPS @ 1080p (1920×1080)
110 FPS @ 3M (2048x1536)
80 FPS @ 5M (2591x1944)
40 FPS @ 4K (3840x2160)
Total FPS (H.265)* 450 FPS @ 720p (1280x720)
450 FPS @ 1080p (1920×1080)
210 FPS @ 3M (2048x1536)
120 FPS @ 5M (2591x1944)
60 FPS @ 4K (3840x2160)
Total FPS (MJPEG)* 210 FPS @ 720p (1280x720)
70 FPS @ 1080p (1920×1080)
50 FPS @ 3M (2048x1536)
30 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding 4K Group 3 (See more)
Maximum Transcoding Channel Number 1 channel, 30 FPS @ 4K (4096 x 2160), H.265 (HEVC), 10-bit or
1 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/ H.265 (HEVC)/ MPEG-4 Part 2 (XVID, DIVX5)/ MPEG-2/ VC-1
VPN Server
Maximum Connections 5
Environment & Packaging
Environment RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
Optional Accessories
Surveillance Device License Pack
Disk Holder: Type C
VS360HD
VS960HD
