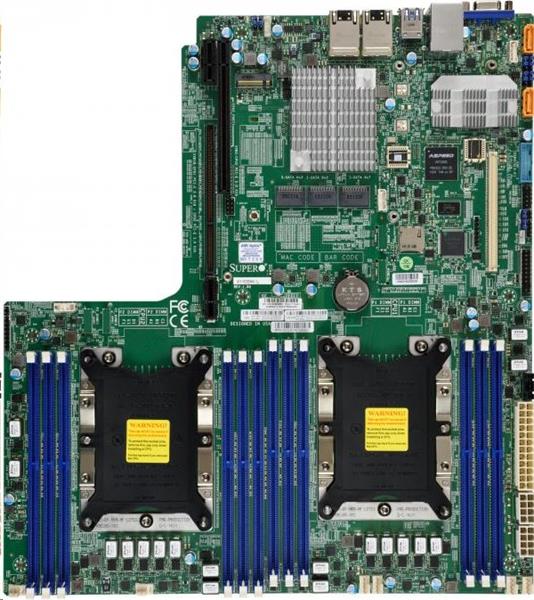

Supermicro X11DDW-L Motherboard Dual Socket P (LGA 3647) supported, CPU TDP support 205W, | X11DDW-L

Key Features


Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/ s, CPU1: Skylake-F CPU supported
Intel® C621
Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110,
2 PCI-E 3.0 NVMExpress x4 Internal Port(s)
1 VGA port
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Dual LAN with GbE from C621



Product SKUs

MBD-X11DPi-N
X11DPi-N

Physical Stats

Form Factor
E-ATX
Dimensions
12" x 13" (30.48cm x 33.02cm)

Processor/ Cache

CPU
Intel® Xeon® Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/ s
CPU1: Skylake-F CPU supported
Cores / Cache
Up to 28 cores

System Memory

Memory Capacity
Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
2666/ 2400/ 2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel® C621
SATA
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with GbE from C621
Graphics
Aspeed AST2500 BMC

Input / Output

SATA
14 SATA3 (6Gbps) port
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (2 rear + 2 headers),
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
1 TPM Header

Expansion Slots

PCI-E
4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110

System BIOS

BIOS Type
AMI UEFI

Management

Software
Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring

Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control
FAN
8x 4-pin fan headers (up to 8 fans), PWM fan speed control
Temperature
N/ A
LED
N/ A
Other Features
Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS

Operating Environment

Operating Temperature Range
0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
10% ~ 95% (non-condensing)
