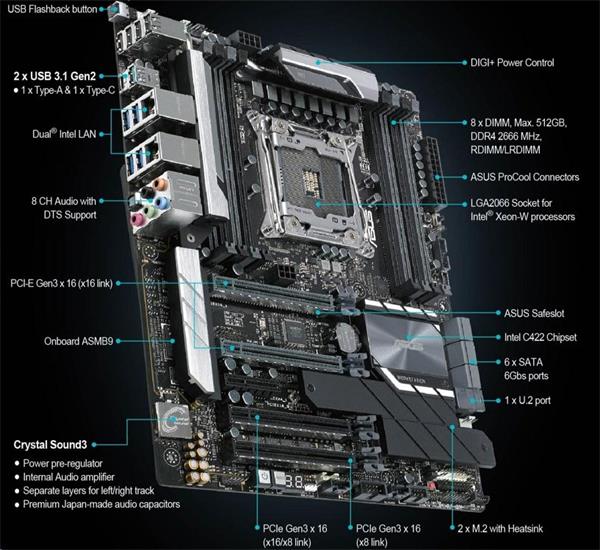

ASUSWS C422 PRO / SE soc.2066 C422 DDR4 ATX 5xPCIe RAID 2xGL USB3.0 | 90SW0080-M0EAY0

CPU

Intel® Socket 2066 Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Max Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Build in Intel® C422
Memory
8 x DIMM, Max. 512GB, DDR4 2666/ 2400/ 2133 MHz RDIMM, LR-DIMM Memory *1
Quad Channel Memory Architecture
Multi-GPU Support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
48-Lane CPU-
2 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/ x8)
1 x PCIe 3.0 x4 (x4 mode)
Storage
1 x M.2 x4 Socket 3*2, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3*3, with M key, type 2242/ 2260/ 2280 storage devices support (both SATA & PCIE mode)
1 x U.2 connector*2
Support Raid 0, 1, 10
Intel® Rapid Storage Technology Enterprise supports
Intel® Virtual RAID (VROC) support for CPU RAID
LAN
Intel® I210-AT, 2 x Gigabit LAN Controller(s)
Audio
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/ 192kHz playback *4
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Optical S/ PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/ digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB Ports
Intel® C422 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
Intel® C422 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
AURA :
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- MemOK!
- Ai Charger+
- Onboard Button : Power/ Reset
- Turbo LAN
DIGI + Power Control :
- CPU Power: Digital 8-phase power design
DIGI + Power Control :
- DRAM Power: Digital 2-phase power design
ASUS Quiet Thermal Solution :
- Stylish Fanless Design with M.2 Heat-sink solution
ASUS EZ DIY :
- ASUS USB BIOS Flashback
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/ s Data-transfer Speeds for M.2 and U.2)
Asus Control Center (ACC) IT management software supported
Intel® Virtual RAID on CPU (VROC) ready
Thunderbolt 3 support
Back I/ O Ports
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-CTM,
4 x USB 3.1 Gen 1 (blue) ,
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/ PDIF out
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/ O
Internal I/ O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
1 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/ s connector(s)
1 x VROC_HW_Key
2 x CPU Fan connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x U.2 connector
3 x System panel connector
1 x Front fan
1 x Rear fan
1 x COM port header
1 x Aspeed VGA header
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
1 x PUMP Fan connector
1x 6-pin ATX 12V Power connector
BIOS
CrashFree BIOS 3
EZ Flash3
F11 EZ Tuning Wizard
ASUS UEFI BIOS EZ Mode
Multi-language BIOS
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Weight
Color Box(3-in-1)
Net Weight: 4.86kg
Gross Weight: 7.49kg

Bulk Pack(5-in-1)
Net Weight: 7.2kg
Gross Weight: 8.9kg
Note
*1 Memory capacity supported depends on both CPU installed and Memory
*2 Bandwidth is shared between M.2_2 and U.2.
*3 SATA Bandwidth is shared between M.2_1 and SATA6G_1
*4 Due to limitations in HAD bandwidth, 32-Bit/ 192kHz is not supported for 8-channel audio. 32-Bit/ 192kHz is only available under Windows® 10
