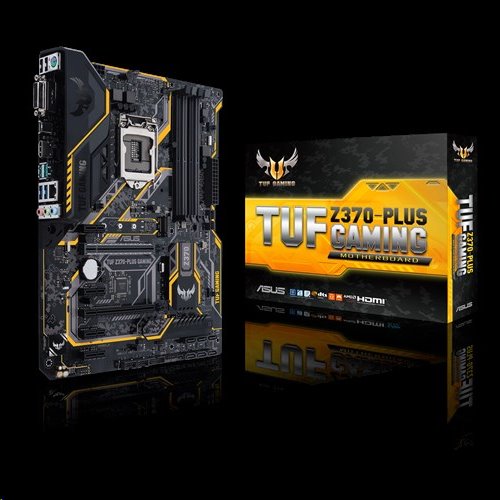

ASUS TUF Z370-PLUS GAMING soc.1151 Z370 DDR4 ATX M.2 USB3.1 DVI HDMI | 90MB0VF0-M0EAY0

Intel® LGA 1151 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 4000MHz support, 32Gbps M.2, Intel Optane memory ready, and USB 3.1 Gen 2.


ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
Exclusive DTS Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/ O for long-term reliability
TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.

CPU
Intel® Socket 1151 for 8th Generation Core™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list
Chipset
Intel® Z370
Memory
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/ DVI-D ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Multi-GPU Support
Supports AMD CrossFireX™ Technology
Expansion Slots
1 x PCIe 3.0/ 2.0 x16 (x16, x8/ x4+x4) *
1 x PCIe 3.0/ 2.0 x16 (max at x4 mode)
4 x PCIe 3.0/ 2.0 x1
*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
Storage
Intel® Z370 Chipset :
2 x M.2 Socket 3*1, , with M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode)
6 x SATA 6Gb/ s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
TUF LANGuard
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/ digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
USB Ports
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, +teal blue, Type-A)
Intel® Z370 Chipset :
1 x USB 5Gb/ s port(s) port(s)
Intel® Z370 Chipset :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, +blue)
Intel® Z370 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )
Special Features
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/ O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
TUF ENGINE! Power Design :
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
M.2 Onboard(The latest transfer technologies with up to 32Gb/ s data transfer speeds)
Back I/ O Ports
1 x PS/ 2 keyboard/ mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/ s port(s) USB Type-CTM ( support 3A power output )
2 x USB 3.1 Gen 2 (teal blue)
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/ O Ports
1 x RGB Header(s)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/ 2260/ 2280 storage devices support (SATA mode & X4 PCIE mode)
6 x SATA 6Gb/ s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/ PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x W_Pump+ Header
1 x AIO PUMP Header
Accessories
User s manual
I/ O Shield
2 x SATA 6Gb/ s cable(s)
1 x M.2 Screw Package
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x SCD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*. Intel® Rapid Storage Technology for CPU-attached Intel PCIe Storage, availability targeted with Intel® Rapid Storage Technology 16(Intel® IRST 16).
*1. When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
When a device is installed on the M.2_2 socket, SATA_5/ 6 ports cannot be used.
