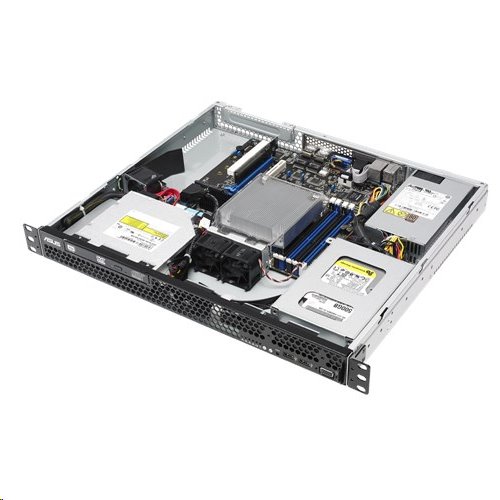

ASUS Server barebone RS100-E9-PI2 / DVR | 90SV049A-M02CE0

Specifications

Processor / System Bus
1 x Socket LGA1151
Intel® Xeon® processor E3-1200 v5 product family
Generation
E9
Core Logic
Intel® C232 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :
DDR4 2133 UDIMM non ECC and with ECC
Memory Size :
16GB, 8GB, 4GB UDIMM
* Please refer to ASUS server AVL for the latest update
Expansion Slots
Total PCI/ PCI-X/ PCI-E/ PIKE Slots: 1
1 x PCI-E x16 (x8 Gen3 Link)
Storage
SATA Controller :
Intel® C232
2 x Internal 3.5” HDD
2 x M.2 connector (2280/ 2260/ 2242)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/ Windows)
(Support Software RAID 0, 1 )
HDD Bays
2 x 3.5" Internal HDD Bays
(Optional 1 x 3.5” HDD + 2 x 2.5” SSD)
Auxiliary Storage FDD/ CD/ DVD
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW
Networking
2 x Intel® I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2400 with 32MB VRAM
Front I/ O Ports
2 x USB 3.0 ports
1 x VGA port
On Board I/ O
1 x External Serial Port
2 x RJ-45 ports
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x VGA port
1 x PS/ 2 KB/ MS port
1 x RJ-45 ports (One for ASMB8-iKVM)(Optional)
Switch/ LED
Rear Switch/ LED:
1 x Q-Code/ Port 80 LED
1 x Power switch

Front Switch/ LED:
1 x Power switch/ LED
1 x Location switch/ LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
OS Support
Windows® Server 2012 R2
Windows® Server 2012
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Citrix XenServer

*(Subject to change without any notice)
Management Solution
ASWM Enterprise
Optional ASMB8-iKVM for KVM-over-IP
Regulatory Compliance
BSMI, CE, C-Tick, FCC(Class B)
Dimensions
380mm x 430mm x 44mm
14.96" x 16.93" x 1.73"
Form Factor
1U
Weight
Net Weight: 5.3 Kg
Gross Weight: 10.6 Kg
Power Supply
Single 250W 80 PLUS Bronze Power Supply
Rating: 100-240Vac, 4A , 50-60Hz, Class I
Environment
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
Part List
Chassis
ASUS R9 C RS100-E8 CHASSIS (13SV0001AM0211)
MB
ASUS P10S-M-DC Server Board (90SB05L0-M0XBN0)
Front Panel Board
1 x FPB-R20D (90SC03Z0-M0XBN0)
Riser Card
1 x RE16L-R9A (90SC03Y0-M0XBN0)
CPU Heatsink/ Cooler
1 x CPU Cooler (13070-0022000)
Power Supply Unit
1 x POWER FLEX 250W 80+BRONZE(0A100-00011700)
HDD Cage
2 x R9 C RS100 E8 HDD BKT ASSY (13SV0001AM0111)
Fan
3 x RS500-E8-RS4 FAN 4.0*2.8 1.0A(13070-00790000)
Fan Holder
12 x R9C RS100 E8 FAN SNAP RIVET/ / PINGOOD/ SRD-3A-SFB (13090-00150000)
4 x R09 V2.0 AC 6#32 WASHER SCREW (13GS0T00M590-1)
Air Duct/ Mylar
1 x R9 C RS100-E9 FAN DUCT (13SV0001L15011)
Optical Drive
1 x SLIM DVD-RW (17601-00012500)
1 x R10E ODD BEZEL ASSY (13GS1J0AP010-1)"
Mounting Rails
1 x RAIL KIT (13GS0T00M601-1)
Cable
1 x FPB CAB2*8/ 1*10+1*6+2*10 750MM (14001-00800400)
1 x VGA CABLE 2*8 TO 2*8 L=700MM (14002-00210000)
1 x USB3.0 2*10P 180 TO 90, 680MM (14002-00200000)
1 x SATA CABLE 180 TO 270;L=270mm (14G000112550)
1 x SATA CABLE 180 TO 270;L=680mm (14G000112540)
1 x SLIN SATA CABLE 7+6P TO 7& 4P/ / ASLINK/ 90ZLASAT0136A (14G000112302)
