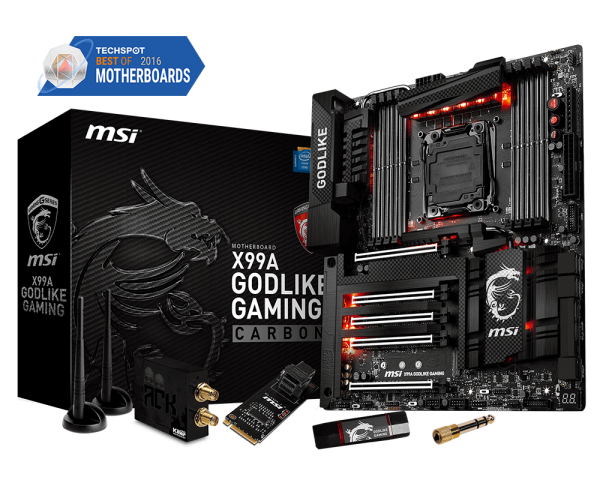

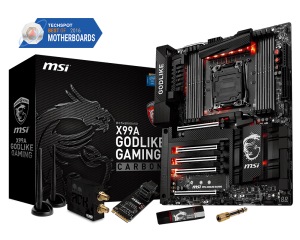

MSI X99A GODLIKE GAMING CARBON / Socket 2011-3 / DDR4 / USB3.1 / E2400 / E-ATX | X99A_GODLIKE_GAMING_CARBON

CPU


• Supports New Intel® Core™ i7 Processors Extreme Edition for LGA 2011-3 Socket
* Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® X99 Express Chipset

Main Memory

• Support eight DDR4 DIMMs 2133/ 2200(OC)/ 2400(OC)/ 2600(OC)/ 2666(OC)/ 2750(OC)/ 2800(OC)/ 3000(OC)/ 3110(OC)/ 3333(OC)/ 3400(OC)DRAM (128GB Max)

- Supports Quad-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
- Supports RDIMM 1Rx8 memory module(Operates in non-ECC mode)

Slots

• 5 x PCIe 3.0 x16 slots (PCI_E1~E4, PCI_E6), support up to 4-way mode
- 1-way mode: x16/ x0/ x0/ x0/ x0
- 2-way mode: x16/ x0/ x0/ x16/ x0*, x16/ x0/ x0/ x8/ x0**
- 3-way mode: x16/ x0/ x0/ x16/ x8*, x8/ x8/ x0/ x8/ x0**
- 4-way mode: x8/ x8/ x0/ x16/ x8*, x8/ x8/ x0/ x8/ x4**

* For the CPU that supports 40 PCIe lanes
** For the CPU that supports 28 PCIe lanes

Multi-GPU Support

• Supports 4-Way AMD® CrossFire™ Technology*
• Supports 4-Way NVIDIA® SLI™ Technology (For the CPU that supports 40 PCIe lanes)
• Supports 3-Way NVIDIA® SLI™ Technology (For the CPU that supports 28 PCIe lanes)
* Supports Windows 7 and Windows 8/ 8.1

Storage

• Intel X99 Express Chipset
•10x SATA 6Gb/ s ports (2 x ports compatible with 1 x SATA Express port)*
- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7~10 ports only support IDE mode and AHCI mode
- Supports Intel® Smart Response Technology (Windows 7/ 8/ 8.1)

• 1 x SATA Express port*
• 1 x M.2 port, supports M.2 SATA 6Gb/ s module* or M.2 PCIe module up to 32Gb/ s speed**
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10

* The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.
** Intel RST does not support PCIe M.2 SSD with Legacy ROM.

USB

• Intel X99 Express Chipset
- 2x USB 3.1 Gen1 ports through the internal USB connector
- 4x USB 3.1 Gen1 ports on the back panel

• ASMedia ASM1142 Chipset
- 2x USB 3.1 Gen2 ports(1 Type-A/ 1-Type-C) on the back panel

• ASMedia ASM1042AE Chipset
- 2x USB 3.1 Gen1 ports through the internal USB connector

Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/ PDIF output

LAN

• 2 x Killer E2400 Gigabit LAN controller

Wireless LAN

• Killer Wireless 1535 module.
- Supports 2x2 802. 11a/ b/ g/ n/ ac with advanced features
- Supports 20/ 40 MHz at 2.4 GHz and 20/ 40/ 80 MHz at 5GHz

Bluetooth

• Killer Wireless 1535 module.
- Supports Bluetooth v4.0 (includes BLE* and Bluetooth 3.0+HS)

* BLE: Bluetooth Low Energy

Internal I/ O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 10 x SATA 6Gb/ s connectors
- 1 x M.2 connector
- 1 x SATA Express connector
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 9 x V-Check connectors
- 1 x Clear CMOS jumper
- 1 x Power button
- 1 x Reset button
- 1 x OC Genie button
- 1 x Multi-BIOS switch
- 1 x OC Genie mode switch
- 1 x Audio selection switch
- 1 x Slow mode switch
- 1 x 2-Digit Debug Code LED
- 1 x Wi-Fi/ Bluetooth module connector

Back Panel I/ O Ports

- 1 x PS/ 2 port
- 2 x USB 2.0 ports
- 1 x Clear CMOS button
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 ports
- 2 x LAN (RJ45) ports
- 1 x 6.3mm Gold-plated stereo headphone jack
- 1 x Optical S/ PDIF OUT connector
- 5 x OFC audio jacks

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
• E-ATX Form Factor

Mounting

• 9 mounting holes
