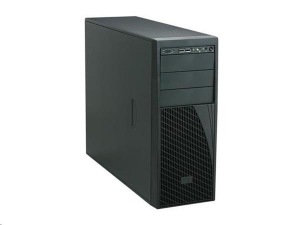

Intel® ServerSystem LSVRP4304ES6XX1 Intel® Xeon® Processor E3-1230 v5, 16GB DDR4 , 120GB | LSVRP4304ES6XX1

pecifications


-Essentials



Included Items Configured system includes: Intel® Server Chassis P4304XXSFCN with (1) 365W Fixed Power Supply; (1) Intel® Server Board S1200SPL; (1) Intel® Xeon® Processor E3-1230 v5 (8M Cache, 3.40 GHz); (1) Intel® Remote Management Module AXXRMM4LITE2; (1) 16GB, 2133MHZ, DDR4, UDIMM memory module; (1) Intel® SSD DC S3510 Series (120GB, 2.5in SATA 6Gb/ s, 16nm, MLC)


Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Compatible Product Series Intel® Xeon® Processor E3-1200 v5 Family
Chassis Form Factor 4U Pedestal
Board Form Factor uATX
Rack Rails Included No
System Board Intel® Server Board S1200SPL
Board Chipset Intel® C236 Chipset (Intel® GL82C236 PCH)
Description SMB Server Blocks feature the Intel Xeon processor E3 family that delivers high memory, I/ O and storage capacity, fast application loading and performance, and the capacity to support multiple users.
Target Market Small Business/ 1st Server
Power Supply 365 W
Power Supply Type AC
# of Power Supply Included 1
Redundant Fans No
Redundant Power Supported No
Heat Sink Included Yes
Included Items Configured system includes: Intel® Server Chassis P4304XXSFCN with (1) 365W Fixed Power Supply; (1) Intel® Server Board S1200SPL; (1) Intel® Xeon® Processor E3-1230 v5 (8M Cache, 3.40 GHz); (1) Intel® Remote Management Module AXXRMM4LITE2; (1) 16GB, 2133MHZ, DDR4, UDIMM memory module; (1) Intel® SSD DC S3510 Series (120GB, 2.5in SATA 6Gb/ s, 16nm, MLC)
# of Front Drives Supported 4
Front Drive Form Factor Fixed 3.5" HDD or 2.5" SSD
Recommended Customer Price N/ A
-Graphics Specifications
Integrated Graphics ‡ Yes
-Expansion Options
PCIe x4 Gen 3 1
PCIe x8 Gen 3 1
PCIe x16 Gen 3 1
Connector for Intel® I/ O Expansion Module x8 Gen 3 1
Connector for Intel® Integrated RAID Module 1
-I/ O Specifications
# of USB Ports 9
Total # of SATA Ports 8
RAID Configuration Software RAID RST (0, 1, 10, 5) and ESRT2 (0, 1, 10)
# of Serial Ports 1
Integrated LAN 2x 1GbE
# of LAN Ports 2
-Advanced Technologies
Intel® Remote Management Module Support Yes
Intel® Node Manager Yes
Intel® Virtualization Technology for Directed I/ O (VT-d) ‡ Yes
Intel® Rapid Storage Technology enterprise Yes
Intel® I/ O Acceleration Technology Yes
-Intel® Transparent Supply Chain
TPM Version 1.2

Cennik pri kompletizacii zostavy v ASBISE

SKS_SRVMB1 1.mechanicka montaz+skusobna instalacia software tj. overenie funkcii vsetkych komponentov update BIOS.....49EUR
SKS_SRVMB2 2.mechanicka montaz+predinstalacia software (zakupeneho unas)+ overenie funkcii vsetkych komponentov update BIOS...79EUR
SKS_SRVMB3 3.mechanicka montaz+predinstalacia software (zakupeneho unas)+ overenie funkcii vsetkych komponentov update BIOS+nastavenie RAID poli tj. finalna uprava .... 110EUR
