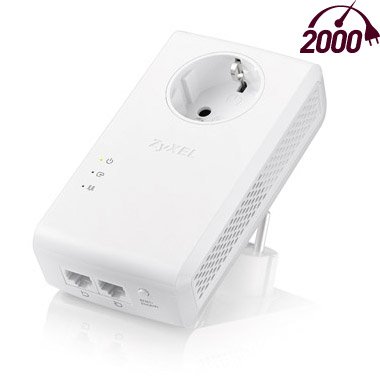

ZyXEL PLA5456 Twin Pack, 2x AV2 1800Mbps MIMO Powerline Pass-Thru Gigabit Adapter, 4K vi | PLA5456-EU0201F

System Specifications

Standard

Compliant with HomePlug AV2
IEEE 1901 and HomePlug AV standard

Powerline Data Rate

Transmit: up to 1800 Mbps*
Receive: up to 1800 Mbps*

Access Methods

CSMA/ CA channel-access schemes

HomePlug Modulation

OFDM symbol modulation
QAM 4096/ 1024/ 256/ 64/ 16
QPSK, BPSK, ROBO carrier modulation schemes

Range

Max. range up to 300 meters over power line

Security

128-bit AES encryption

Quality of Service (QoS)

Supports up to 4-level type QoS

Frequency Band

2 MHz to 86 MHz

IGMP

IGMP v1/ v2/ v3

System Requirements

Operating system independent:
Ethernet: RJ-45
Utility software OS support:
Microsoft Windows XP/ Vista/ 7/ 8

Hardware Specifications

Ethernet interface: Two 10/ 100/ 1000 Mbps RJ-45 connectors with auto MDI/ MDIX support
LED indicators:
Powerline network quality:
- Green: Best
- Amber: Better
- Red: Good
Ethernet link/ activity
Button:
Encrypt/ Reset button
Power rating: 100 to 240 V AC, 50/ 60 Hz
Power consumption:
Full operation: 6 watt max.
Socket/ Connector:

EU Plug
EU:
Type F (CEE 7/ 4)/ Type F (CEE 7/ 4) - Max power rating: 16 A 250 V ~
- DE, NL, ES, PT, AT, SE, FI, NO, GR, HU, LU

Physical Specifications

Item dimensions (WxDxH): 133.5 x 71.1 x 38.6 mm (5.25" x 2.79" x 1.51")
Item weight: 230 g (0.5 lb.)
Packing dimensions (WxDxH): 231 x 185 x 95 mm (9.09" x 7.28" x 3.74")
Packing weight: 788 g (1.71 lb.) (twin pack)

Environmental Specifications

Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (Non-condensing)

Certification

Safety: CE-LVD, BSMI
EMC: CE, FCC, ICES, BSMI

Packing Contents

2 Powerline Ethernet Adapters
2 Ethernet cables
Quick start guide
Warranty card
