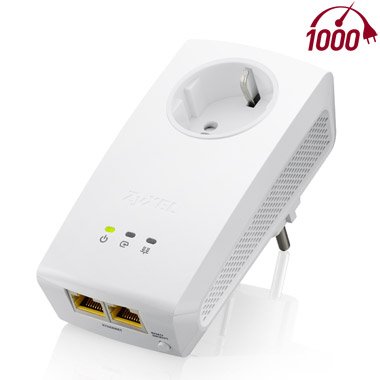

ZyXEL PLA-5256, 2x 1000Mbps Powerline Past-Thru Gigabit Adapter, Directplug design, 128 | PLA5256-EU0201F

System Specifications

Standard

Compliant with HomePlug AV2
IEEE 1901 and HomePlug AV standard

Powerline Data Rate

Transmit: up to 1000 Mbps*
Receive: up to 1000 Mbps*

Access Methods

CSMA/ CA channel-access schemes

HomePlug Modulation

OFDM symbol modulation
QAM 4096/ 1024/ 256/ 64/ 16
QPSK, BPSK, ROBO carrier modulation schemes

Range

Max. range up to 300 meters over power line

Security

128-bit AES encryption

Quality of Service (QoS)

Supports up to 4-level type QoS

Frequency Band

2 MHz to 86 MHz

IGMP

IGMP v1/ v2/ v3

System Requirements

Operating system independent:
Ethernet: RJ-45
Utility software OS support:
Microsoft Windows XP/ Vista/ 7/ 8

Hardware Specifications

Ethernet interface: Two 10/ 100/ 1000 Mbps RJ-45 connectors with auto MDI/ MDIX support
LED indicators:
Power on/ off
Powerline network quality:
- Green: Best
- Amber: Better
- Red: Good
Ethernet link/ activity
Button:
Encrypt/ Reset button
Power rating: 100 to 240 V AC, 50/ 60 Hz
Power consumption:
Full operation: 5.5 watt max.
Socket/ Connector:

EU outlet
(15 A Max. 250 V) Type F (CEE 7/ 4)/ Type F (CEE 7/ 4) DE, NL, ES, PT, AT, SE, FI, NO, GR, HU, LU

Physical Specifications

Item dimensions (WxDxH): 125 x 65 x 42 mm (4.92" x 2.56" x 1.65")
Item weight: 215 g (0.46 lb.)
Packing dimensions (WxDxH): 215 x 141 x 94 mm (8.46" x 5.55" x 3.7")
Packing weight:
Single pack: 310 g (0.69 lb.)
Starter kit: 550 g (1.21 lb.)

Environmental Specifications

Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (Non-condensing)

Certification

Safety: CE-LVD, BSMI
EMC: CE, FCC, ICES, BSMI

Packing Contents

Powerline adapter
Ethernet cable
Quick start guide
Warranty card
