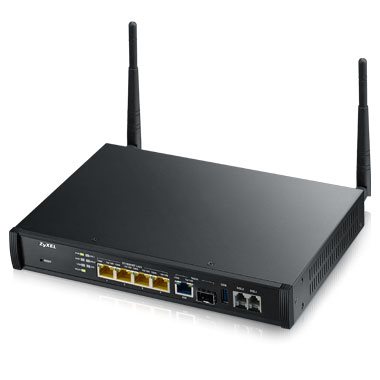

ZyXEL SBG3500 Small Business Gateway, VDSL2, 1x GbE WAN (RJ45 / SFP) 4x GbE LAN, 1x USB | SBG3500-NB00-EU01V1F

System Specifications
High Availability WAN

3 WAN interface (VDSL, Ethernet/ SFP) options
User configurable multi-WAN load balancing with one WAN for failover/ fallback

VDSL Compliance

G.993.1 VDSL, G.993.2 VDSL2 Annex A/ B compliant, band plan 997, 998
G.994.1 (G.hs) Handshake, G.997.1
Support VDSL profiles up to 17a
Packet Transfer Mode (PTM) 17a bonding
Rate adaption
Seamless Rate Adaption (SRA)
INP: Up to 16 symbols
G.INP, G.Vector
PhyR configurable

ADSL Compliance

G.992.1 (G.dmt), G.992.2 (G.lite) Annex A/ B compliant
G.992.3 (ADSL2), G.992.5 (ADSL2+) Annex A/ B compliant
Reach-Extended ADSL (RE ADSL)
Seamless Rate Adaptation (SRA)
PPP over ATM AAL5 (RFC2364)
Support VC-based and LLC-based multiplexing
ATM traffic shaping (CBR, VBR-rt/ nrt, UBR)
PhyR configurable

Ethernet/ SFP WAN

1 x GbE RJ-45 port
1 GbE SFP port
Ethernet WAN and SFP dual personality

Ethernet LAN

4 x GbE RJ-45 ports
N-way, automatic speed negotiation supported
Auto-sensing, auto-detection MDI/ MDIX

Bridge/ Router

Dynamic learning for up to 2014 MAC address
PPPoE, PPPoA, IPoE, IPoA (RFC 1483)
DHCP client/ server/ relay
DHCP option 43/ 60/ 61/ 66/ 121/ 125/ 150
DNS proxy, DDNS
RIP I/ RIP II supported
Adjustable MTU size
QoS classification route, queuing and scheduling
Interface grouping
IPv6 support

VPN

Simple wizard support (Express wizard)
Concurrent 20 IPSec VPN tunnels
IPSec, PPTP and L2TP over IPSec VPN
IPSec HW engine
Algorithm: AES (128/ 192/ 256)/ 3DES/ DES
Authentication: SHA-1/ MD5
Auto reconnect VPN
VPN failover/ fallback

Firewall & Security

Full cone NAT/ Symmetric NAT/ Restrict Cone NAT, NAT ALGs
20, 000 NAT sessions supported
Configurable DMZ
PPTP/ IPSec/ L2TP pass through
PAP/ CHAP/ MS-CHAP v1 and v2
Stateful packet inspection
DoS/ DDoS protection
URL/ key word filtering
Access control: up to 256 ACL rules
Directional ACL rule support

USB

1 x USB 1.1/ 2.0 port
FTP file sharing
Supported file system: FAT16/ 32, EXT2/ 3
Support mobile broadband dongle
Support WWAN package update
3G budget control

Wi-Fi

IEEE 802.11n compliance, backward compatible with 802.11 b/ g
Dynamic auto channel selection
WPS on/ off configuration in Web GUI
Multiple number of SSID: Up to 4
Per-SSID VLAN binding
WEP data encryption 64/ 128bit
WPA/ WPA-PSK with TKIP & AES security type
WPA2/ WPA2-PSK with TKIP & AES security type
IEEE 802.1x (EAP-MD5, TLS and TTLS)
32 MAC filter
Client connection: A maximum of 32 clients simultaneously connect to the AP
Adjustable WLAN output power (via CLI, XML)
Web-based authentication

WLAN Management

ZyXEL AP Controller (APC) Lite compliant
Client RSSI threshold to prevent sticky clients
Wireless Layer 2 isolation
RADIUS authentication
Wi-Fi Multimedia (WMM) wireless QoS
CAPWAP discovery protocol
ZyXEL Wireless Optimizer (ZWO) AP planning

System Management

Two-tier log in
Login privilege
Dual image firmware protection
Text based configuration (XML based)
Support TR-069, TR-098, and TR-111
SNMP v1, v2c
Rom-D support
Syslog
User management (user data base/ profile)

Hardware Specifications

WAN interface:
SBG3500-N: 2 x RJ-11 connectors for VDSL2/ ADSL2+ over POTS
SBG3500-NB: 1 x RJ-45 connector for VDSL2/ ADSL2+ over ISDN
1 x RJ-45 port for Gigabit Ethernet/ SFP interface for connection to Fiber (dual personality)
LAN interface: 4 x 10/ 100/ 1000M Auto MDI/ MDIX RJ-45 ports
USB: One type A, 2.0 host USB
WLAN on/ off button
RS232 console port
LED indicators: DSL1, DSL2, Ethernet WAN/ Ethernet LAN (LED on connectors), power, internet, USB, SFP, WLAN
Power input: 12 V DC, 2 A

Physical Specifications

Item dimensions (WxDxH): 242 x 170 x 36 mm (9.53" x 6.69" x 1.42")
Item weight: 1.19 kg (2.62 lb.)
Packing dimensions (WxDxH): 343 x 209 x 75 mm (13.50" x 8.23" x 2.95")
Packing weight: 1.93 kg (4.26 lb.)

Environmental Specifications

Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 95% (Non-condensing)

Storage Environment

Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (Non-condensing)
MTBF (hrs): 300, 000

Certification

CE

EMC/ RF
Safety
ErP
RoHS 2
