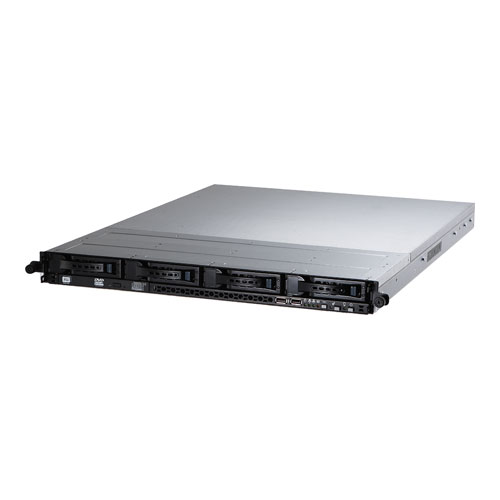

ASUS Server barebone RS300-E8-RS4 Xeon E3-12xxV3 4x hotswap HDD 4x 1G LAN 1U , rack | 90SV00BA-M02CE0

Specifications

Processor / System Bus
1 x Socket LGA1150
Intel® Xeon® processor E3-1200 v3 product family
4th Gen Intel® Core™ i3 processors
Intel® Pentium™ processors
Intel® Celeron™ processors

*Refer to www.asus.com for CPU Support list
Generation
E8
Core Logic
Intel® C224 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR3 1600/ 1333 UDIMM*
Memory Size :
8GB, 4GB, 2GB UDIMM
Expansion Slots
1 * PCI-E x16 (Gen3 x8 link) (Full-Height/ HL)
1 * PCI-E x8 (Gen3 x4 link) (Full-Height/ HL)

1* PIKE Slot for Stroage Enhancement
Storage
SATA Controller :
Intel® C224
2 x SATA2 3Gb/ s ports
4 x SATA3 6Gb/ s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card
ASUS PIKE 2308 8-port SAS 6G RAID card
HDD Bays
4 x Hot-swap 3.5" "HDD Bays
2 x SSD Bays(Optional)
Auxiliary Storage FDD/ CD/ DVD
1 * Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD ROM
(DVD-RW default for North America)
Networking
4 x Intel® I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2300 with 32MB VRAM
On Board I/ O
1 x PS/ 2 KB/ MS port
5 x RJ-45 ports (One for ASMB7-iKVM)
4 x USB 3.0 ports (Front x 2, Rear x 2)
2 x USB 2.0 ports (Front x 0, Rear x 2)
1 x Internal A Type USB Port
2 x VGA port (Front x 1, Rear x 1)
OS Support
CentOS 5.8/ 6.3 64-bit
CentOS 5.8/ 6.2 64-bit
Windows® Server 2008 R2 Enterprise
Windows® Server 2008 Enterprise SP2 64-bit
Windows® Server 2012
Windows® 8 32/ 64-bit
RedHat® Enterprise Linux AS5.8/ 6.3 64-bit

*(Subject to change without any notice)
Management Solution
Software: ASWM Enterprise

Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-IP
Regulatory Compliance
BSMI, CCC, CE, C-Tick, FCC(Class A)
Dimensions
615mm * 444mm * 43.4mm
Form Factor
1U
Weight
16Kg
Power Supply
1+1 Redundant 450W 80PLUS Gold Power Supply

Rating: 100-127Vac/ 200-240Vac, 8A/ 4A , 47-63Hz, Class 1
Environment
Operation temperature: 10? ~ 40? / Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box
1 x RS300-E8 User s Guide
1 x ASUS ASWM Enterprise User s Guide
1 x Bag of Screws
2 x AC Power Cable
1 x ASUS Auto Installation DVD
1 x RS300-E8 Support DVD
1 x ASWM ENTERPRISE DVD
Optional Items
ASMB7-iKVM Remote management card
Slim-type Optical Drive
(DVD-RW default for North America)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/ IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108-32PD H/ W RAID card (90-S00CS0150T)
Part List
Chassis
ASUS R10E 1U Rackmount Chassis
MB
ASUS P9D-C/ 4L Server board
HDD Backplane
1 x SAS/ SATA Backplane (60SC00G1-SC0A01)
Front Panel Board
1 x Front I/ O Board (60SC03Z0-SC0A01)
Power Distribution Board
1 x Redundant Power Supply Power Distribution Board (PDB-R10E) (60SC02X0-SC0A04)
Riser Card
1 x PCI-E Riser Card (RE16LE8R-R10A) (60SC00Q0-SC0C04)
CPU Heatsink/ Cooler
1 x CPU Heatsink (13071-00880000)
Power Supply Unit
2 x 450W Redundant Power Supply (0A100-00110100)
HDD Tray
4 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1)
Fan
4 x System Fans (40mm x 28mm) (13G074108060)
Fan Holder
4 x Fan Holder (13GS1200P070-1 + 13GS0F00P021-1)
Air Duct/ Mylar
Thermal Mylar (13GS1J00L100-1)
Optical Drive
"1 x Slim DVD-RW (Optional) (17601-00011000)
(DVD-RW default for North America)"
Mounting Rails
1 x Friction rail kit (90SK0000-M0HAN0)
Cable
"1 x USB3.0 2*10P 180 TO 90, 680MM (14002-00200000)
1 x LAN LED CBL 2*4P TO 1*5P L=900(14001-00790000)
1 x VGA CABLE 2*8 TO 2*8 L=700MM(14002-00210000)
1 x MINI SATA 13P TO 7P+4P, 390MM(14G000114512)
1 x SATA 7P*2 TO 7P*2, L=350MM(14001-00720000)
1 x SATA 7P*2 TO 7P*2, L=650MM(14001-00720400)
1 x W.H CABLE 6P TO 6P, L= 550MM(14G03001120C)
1 x W.H CABLE 10P TO 8P, L=700MM(14G030028210)
1 x FPB CBL 2*8 TO 2*10+1*6, 750MM(14G030042840)
1 x PMBUS CABLE 5P TO 5P L:500MM(14G000611200)"
